MTX Audio 600-Watt RMS Mono Block Power Sports Amplifier

MTX Audio 600-Watt RMS Mono Block Power Sports Amplifier



Powerful, yet compact, audio amplifier that can be installed on any UTV, sand rail, boat, or motorcycle.

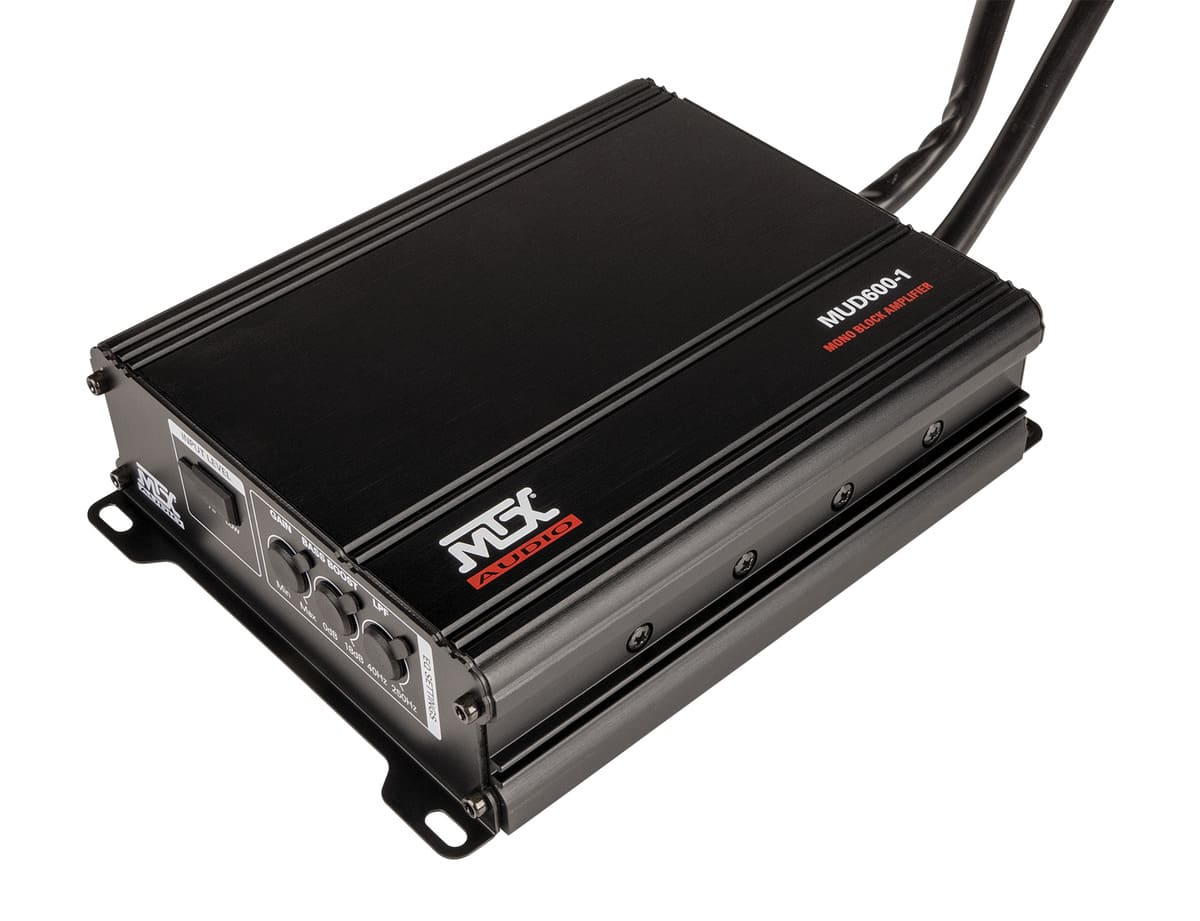

The MTX MUD600-1 has class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit is a mono block amplifier capable of delivering 600-watts RMS power. More than enough power to drive a subwoofer.

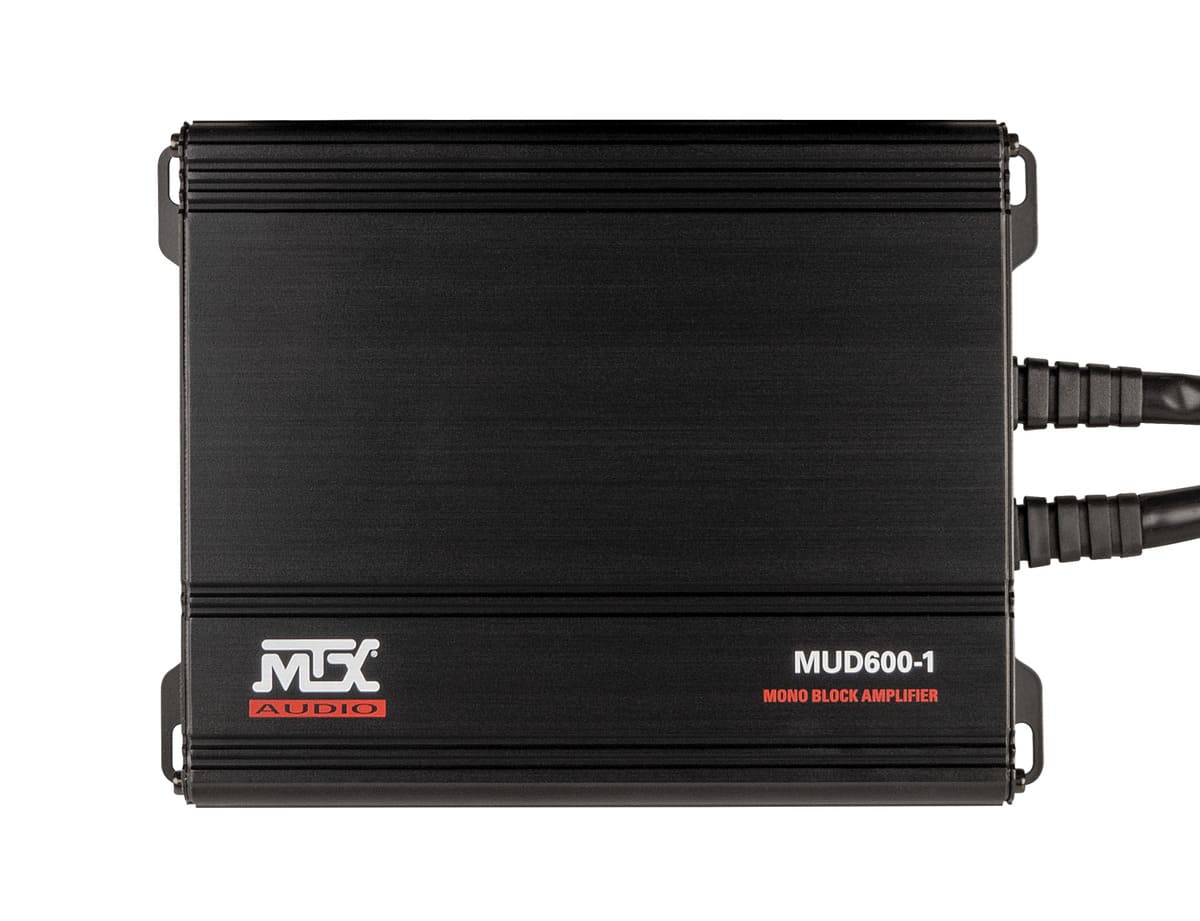

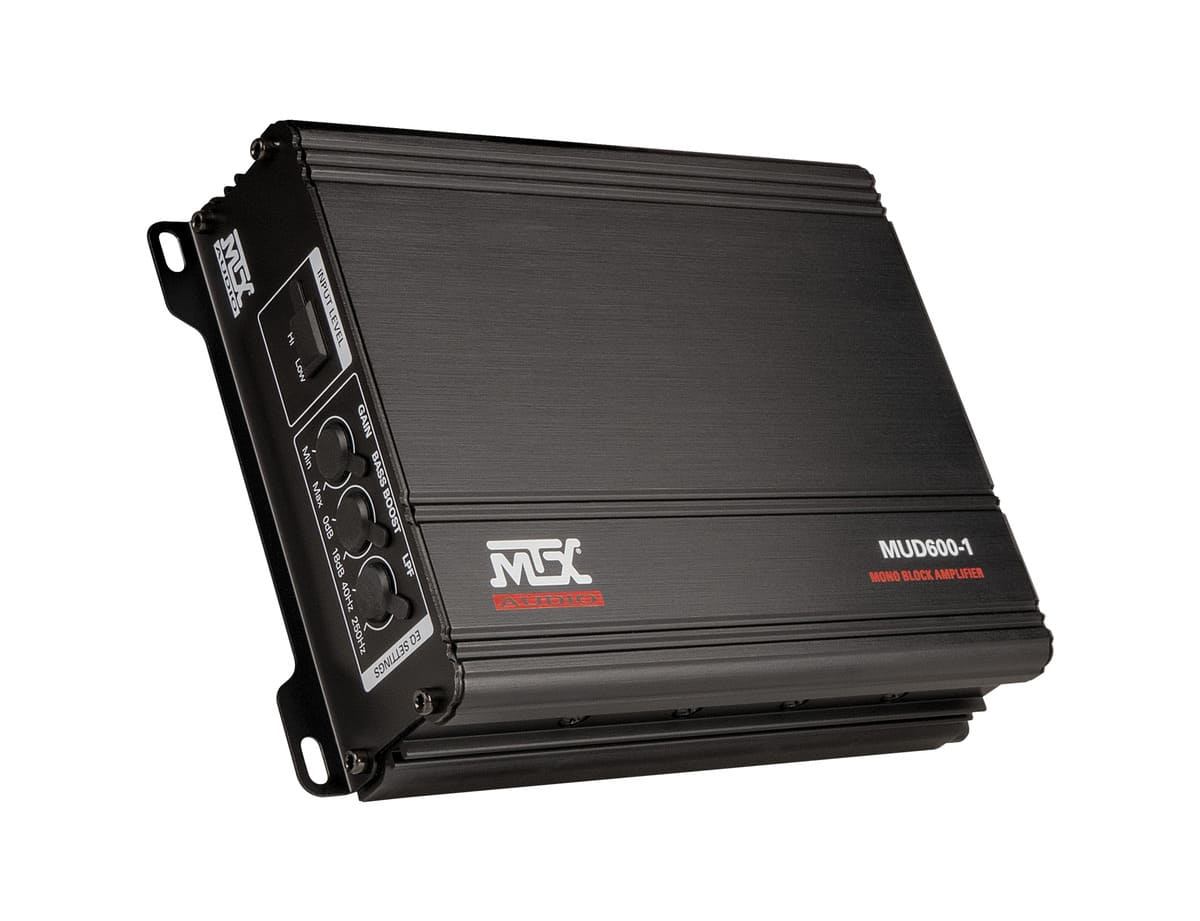

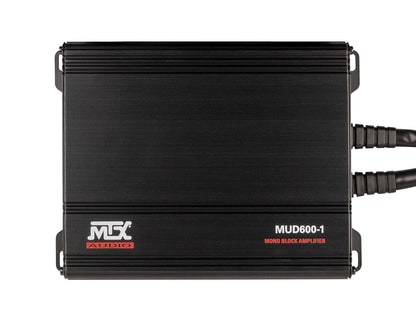

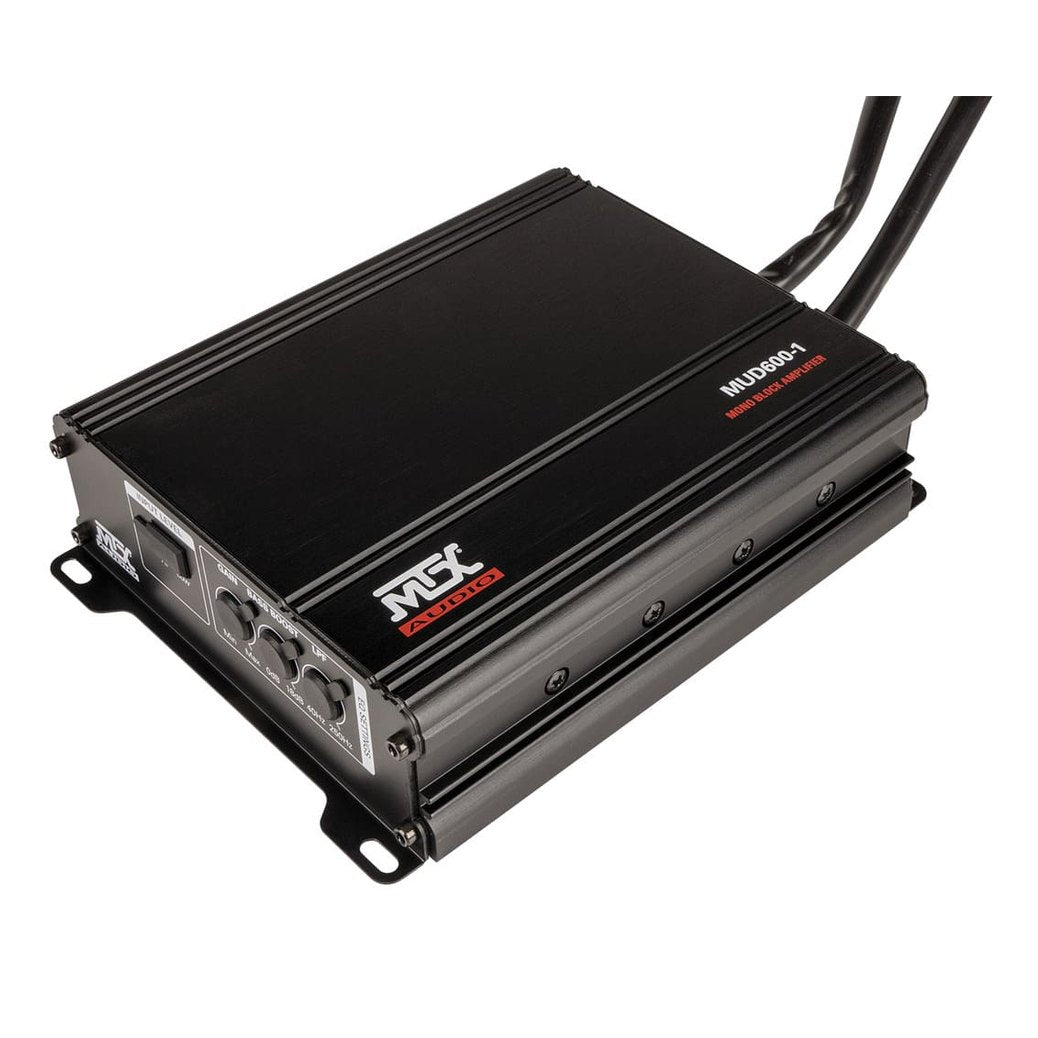

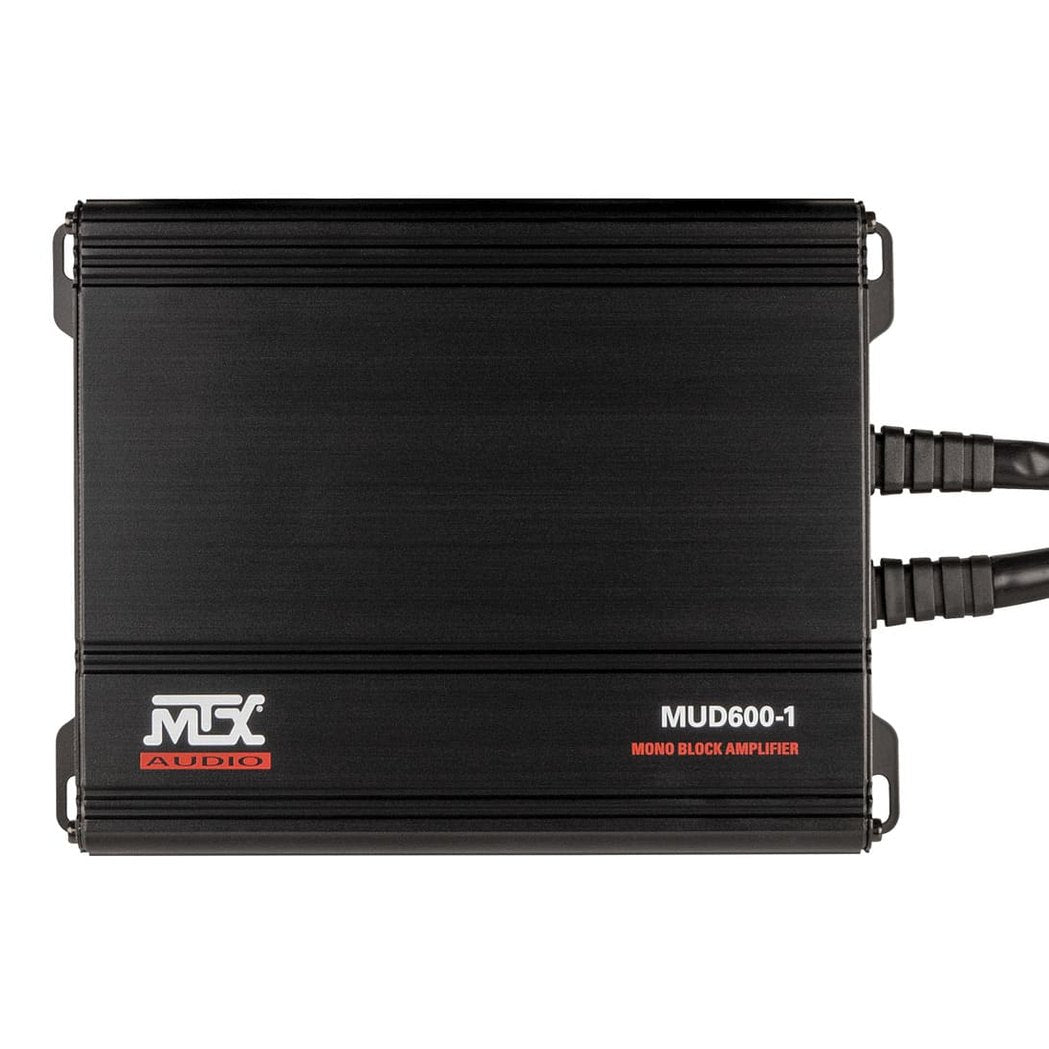

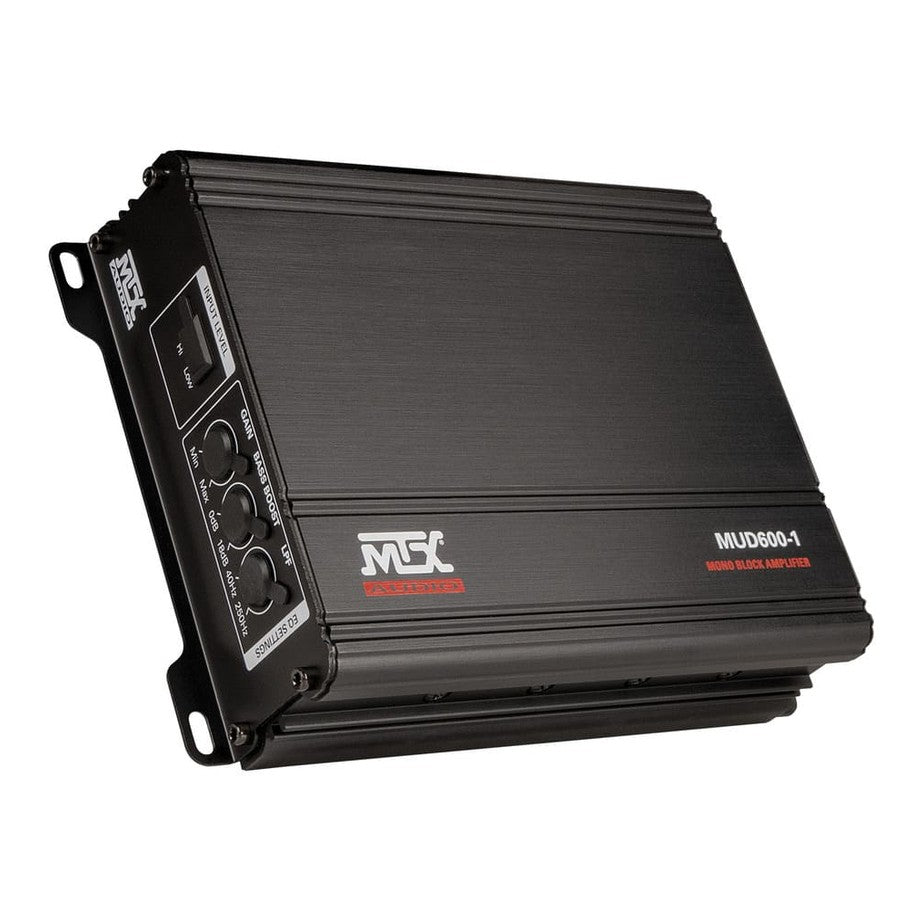

Compact and Powerful: The MTX MUD600-1 is the most compact subwoofer amplifier that MTX has ever made. This unit features class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit is capable of delivering 600 watts of RMS power. More than enough power to drive a subwoofer.

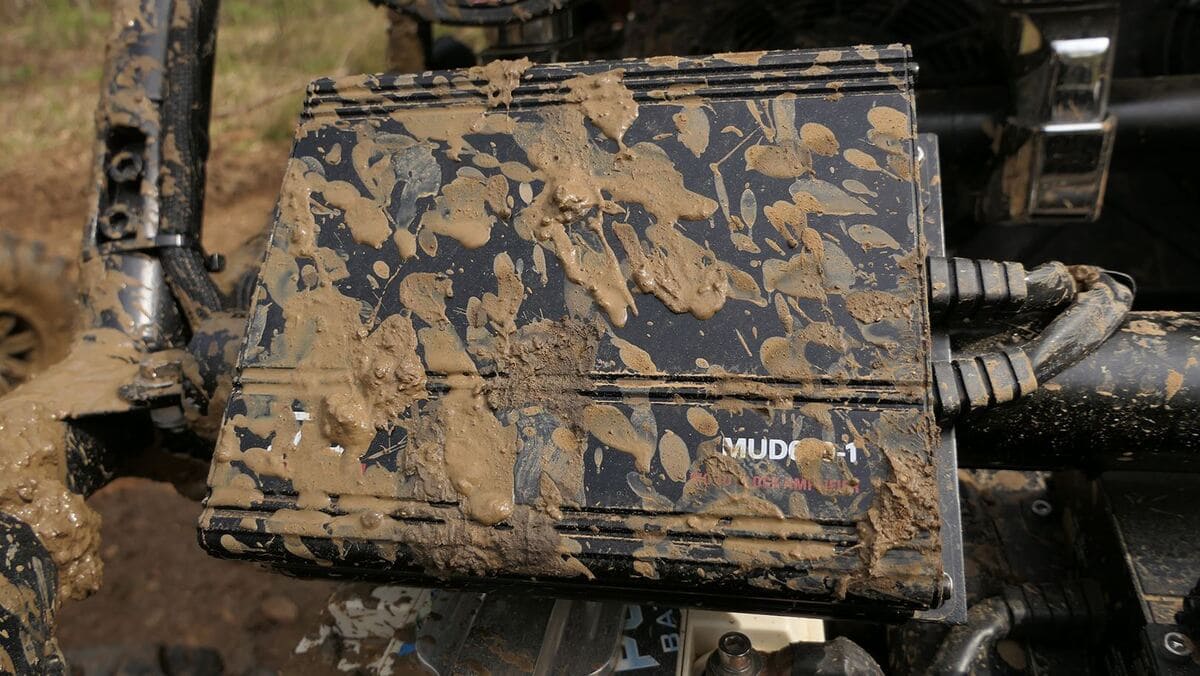

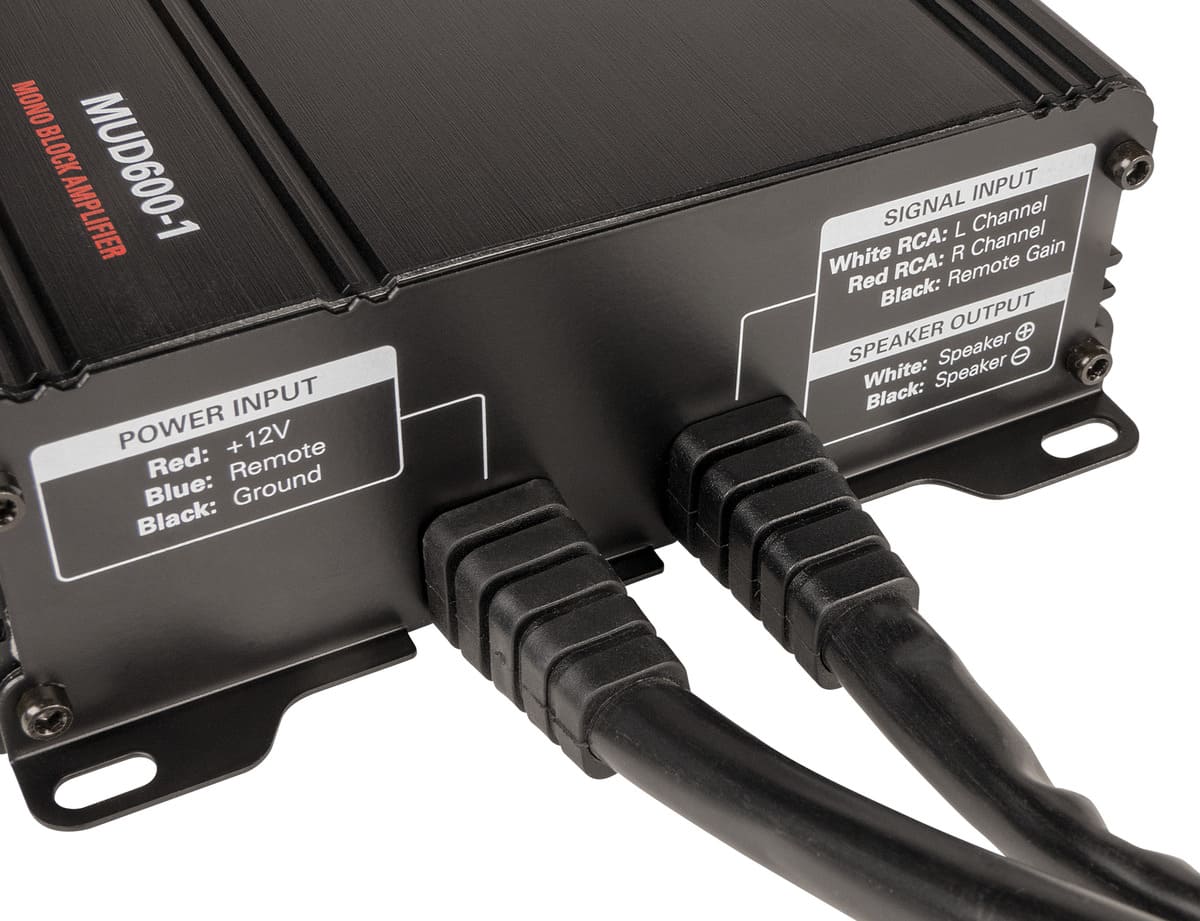

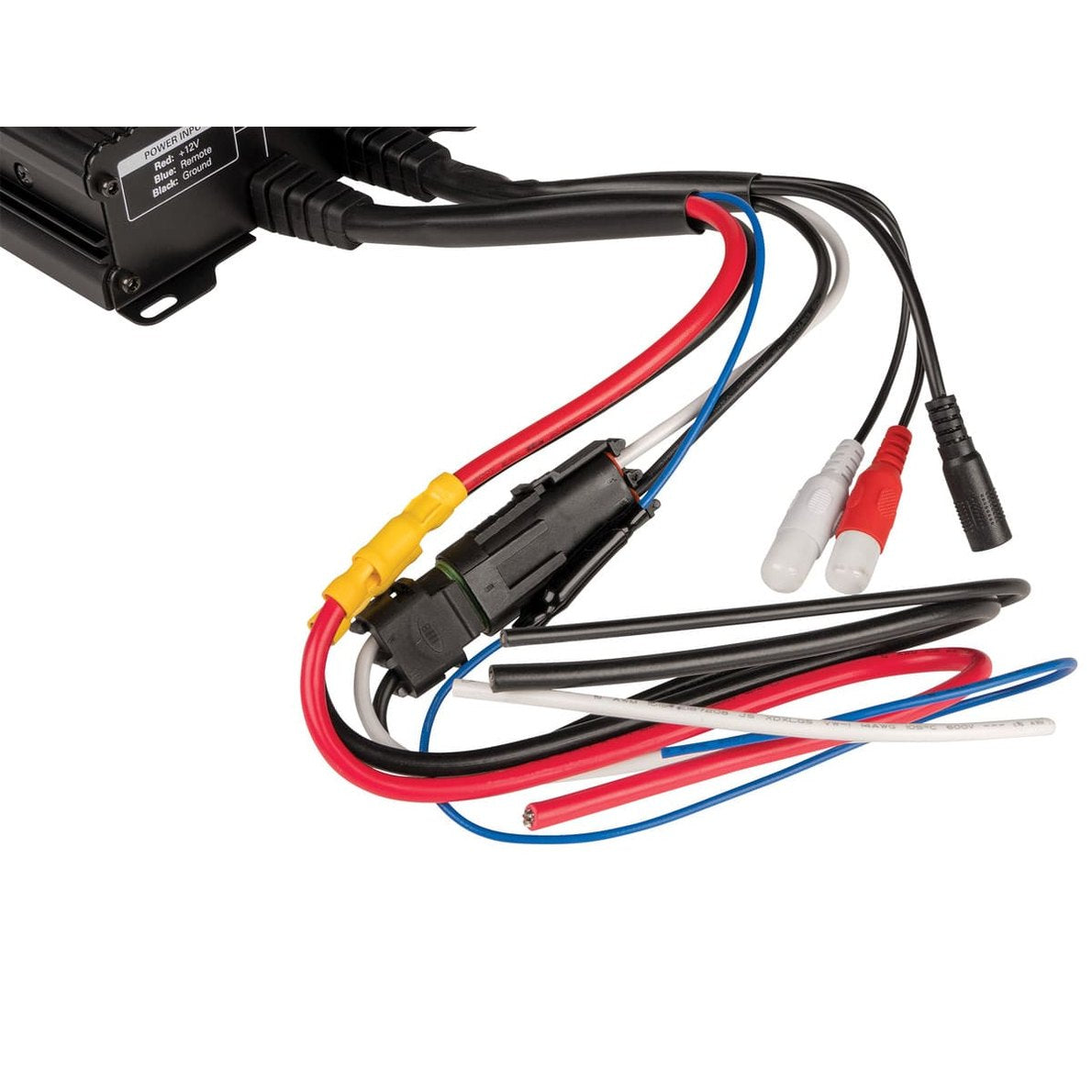

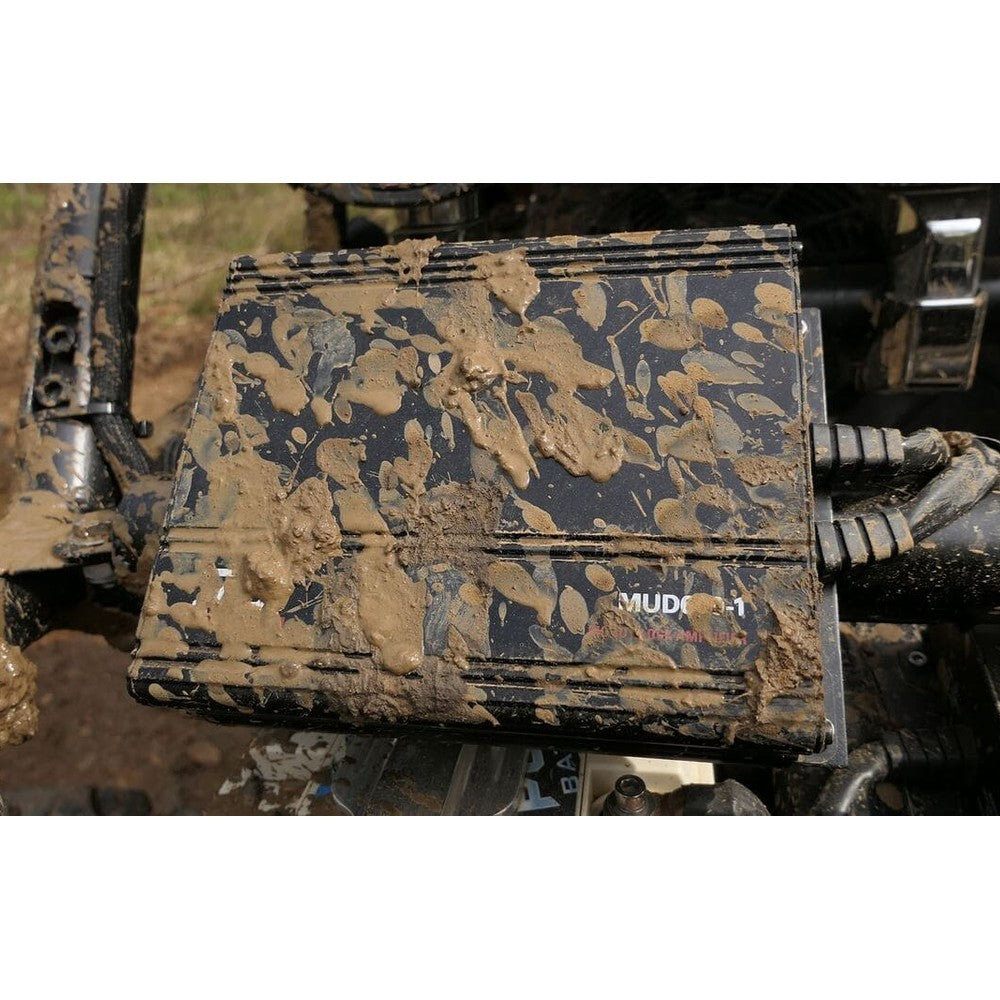

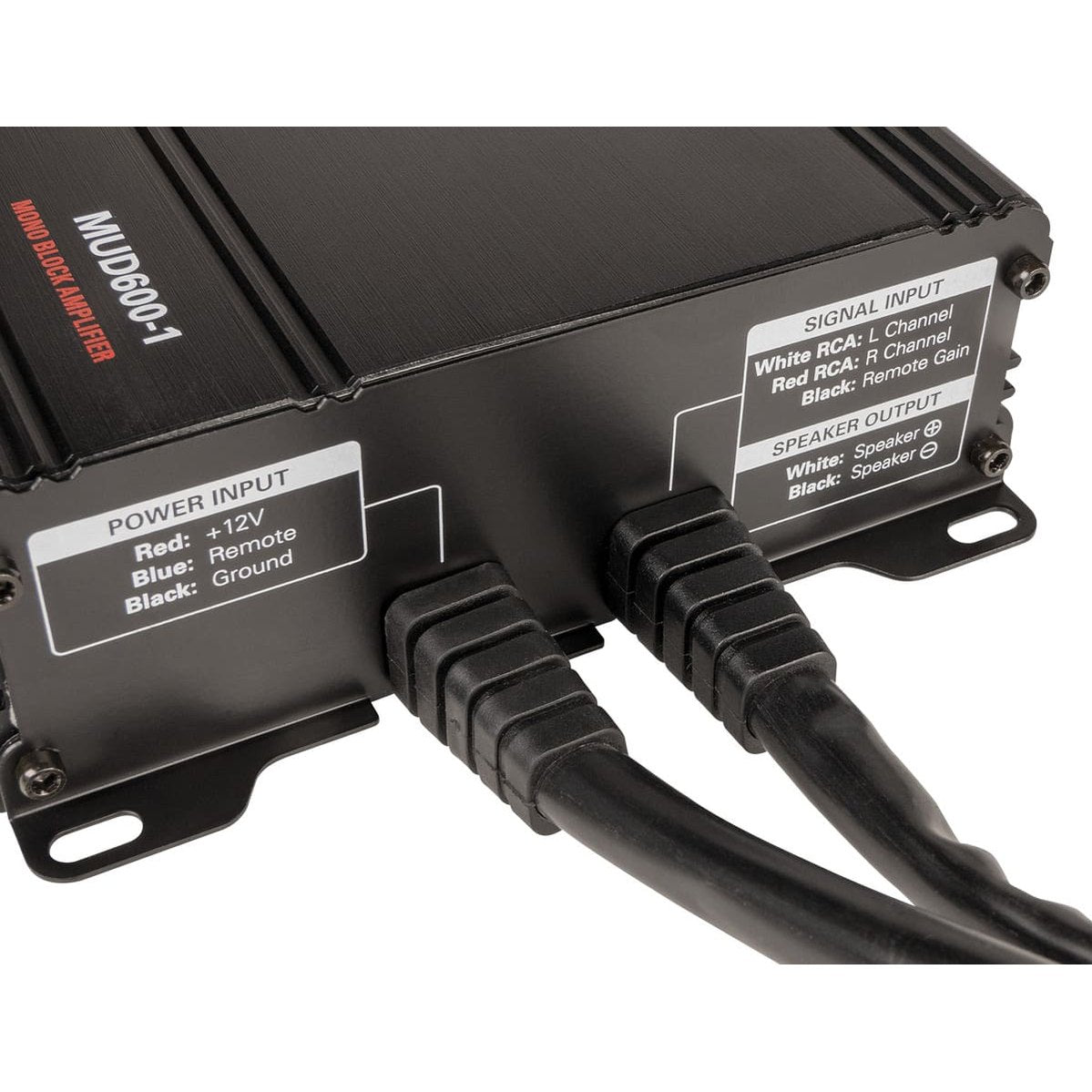

Outdoor Rugged: The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

Use it Wherever: The compact nature of the amplifier and its excellent efficiency make it ideal for a variety of UTV, marine and motorcycle applications.



Features:

• 600-watt RMS mono-block amplifier

• Class D topology for high efficiency and low heat

• Compact design for easy installation in tight spaces

• Weather-resistant with conformal coated circuit board and sealed controls

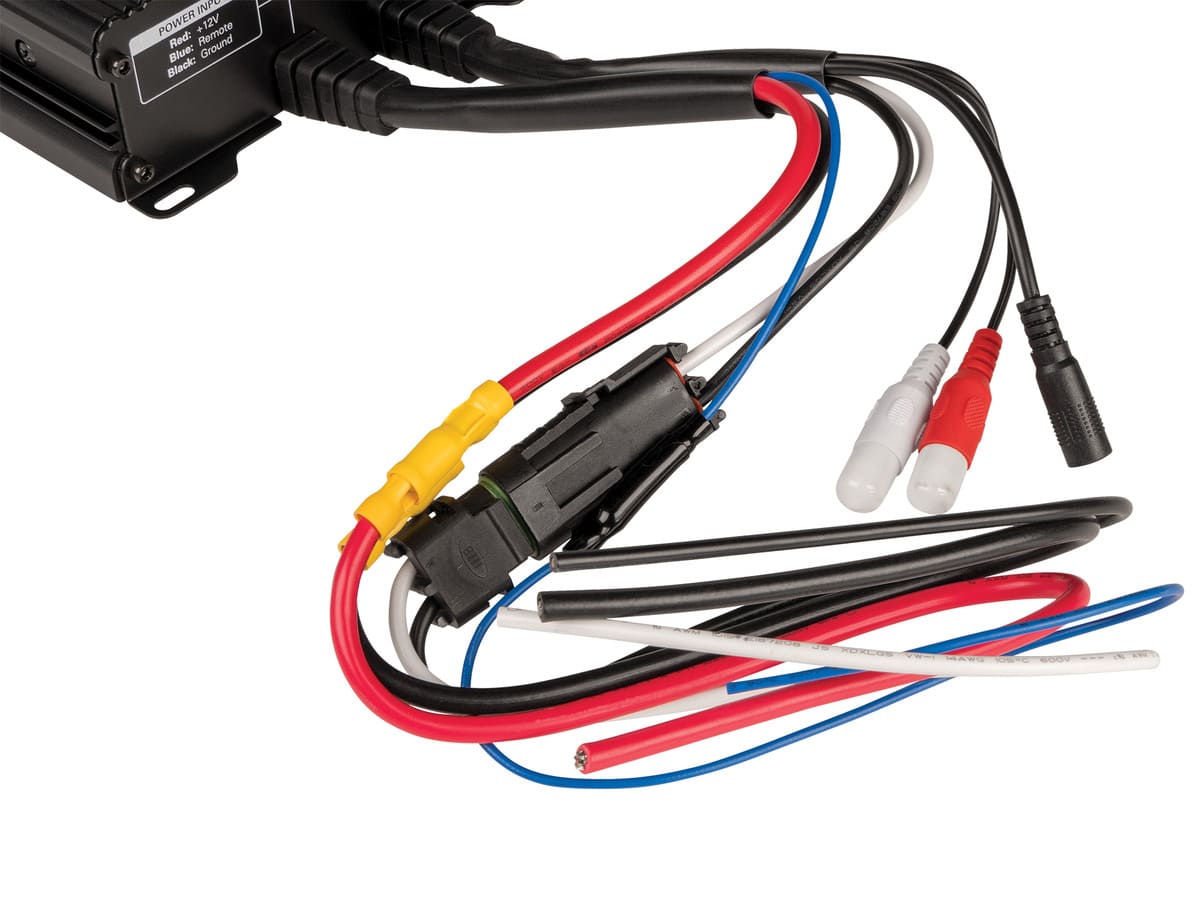

• Pigtail wiring harness for secure and protected connections

• Ideal for UTVs, boats, motorcycles, and other outdoor vehicles




Specifications:

• Description: Mono Block

• 4Ω RMS Power Output: 300W x 1 Channel

• 2Ω RMS Power Output: 650W x 1 Channel

• 1Ω RMS Power Output: NA

• Signal to Noise Ratio: 85 DBA

• Topology: Class D

• THD: <1.0%

• Frequency Response: 10Hz - 250Hz

• Crossover: Variable Low @ 40 - 250Hz

• Height: 1.85" (47mm)

• Width: 5.51" (140mm)

• Depth: 7.36" (187mm)



Installation Instructions:

• MTX005930-MUD600-1-Owners-Manual.pdf

External Base Controller Integration
