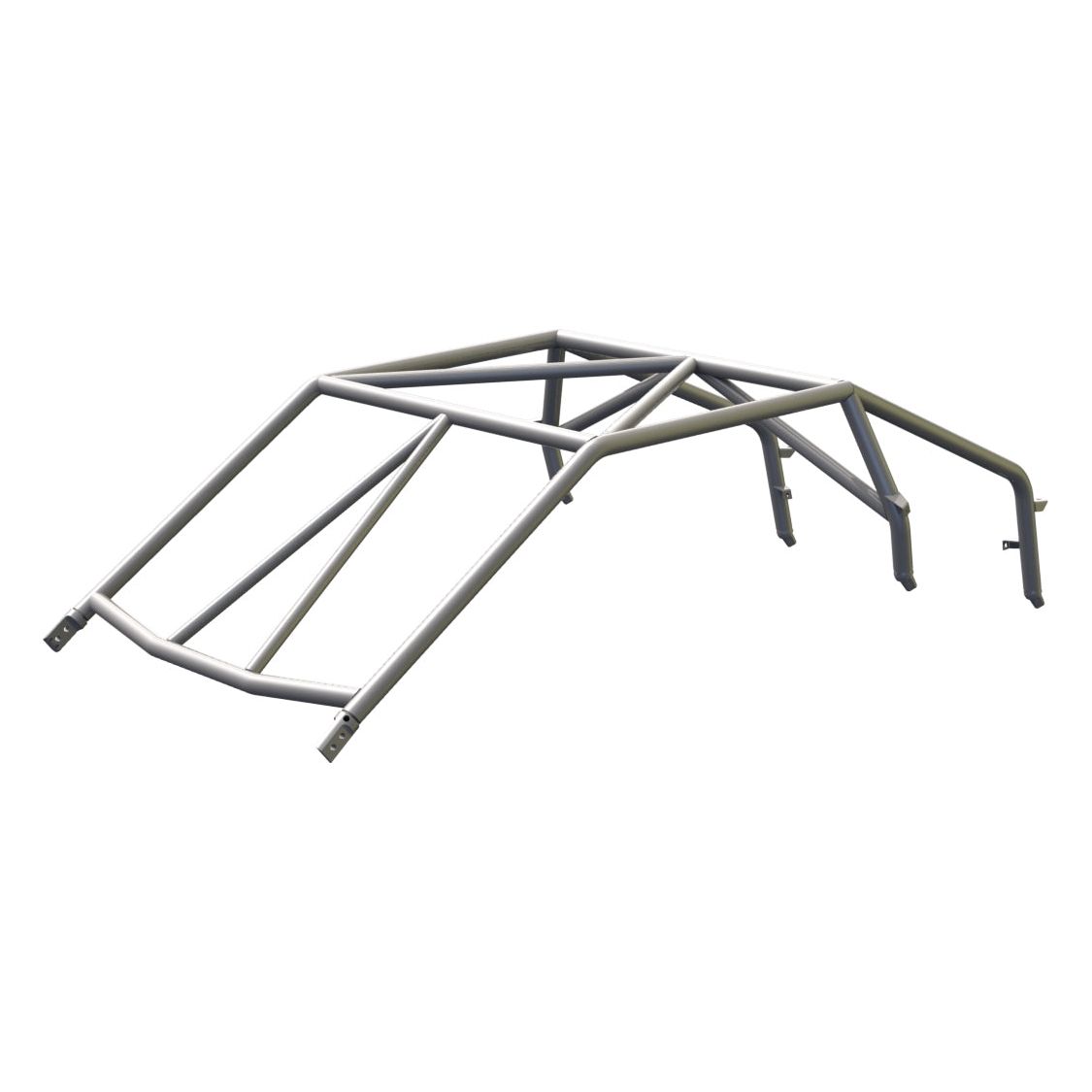

Ready-to-weld "Baja Spec" Roll Cage Kit for Polaris® RZR Pro R (2022+).
High quality DOM steel used throughout. Main tubes (roof tube and B-Pillar) are 1.75" diameter .120" wall thickness, rear intrusion tubes are 1.5" diameter .095" wall thickness, front intrusion tubes are 1.25" diameter .095" wall thickness, all remaining tubes are 1.75" diameter .095" wall thickness. Our "Baja Spec" roll cages use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. This is truly the best roll cage kit on the market. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.
Features:
Highest grade 1020 DOM steel
1.75" x .120" main tubes
1.75" x .095" internal tubes
1.5" x .095" rear intrusion tubes
1.25" x .095" front intrusion tubes
.8" shorter in overall height
(6) CNC Machined chassis clamps included
Highly triangulated roll cage for added strength
Flat roof design
Tubes are laser cut and labeled
No welding fixture required
No grinding or other fab work required
Competent welder and welding machine, tape measure and ratchet straps are all that is required
Kit can be TIG or MIG welded
Includes:
15 Laser Notched Tubes with tab and slot design for easy positioning of tubes
