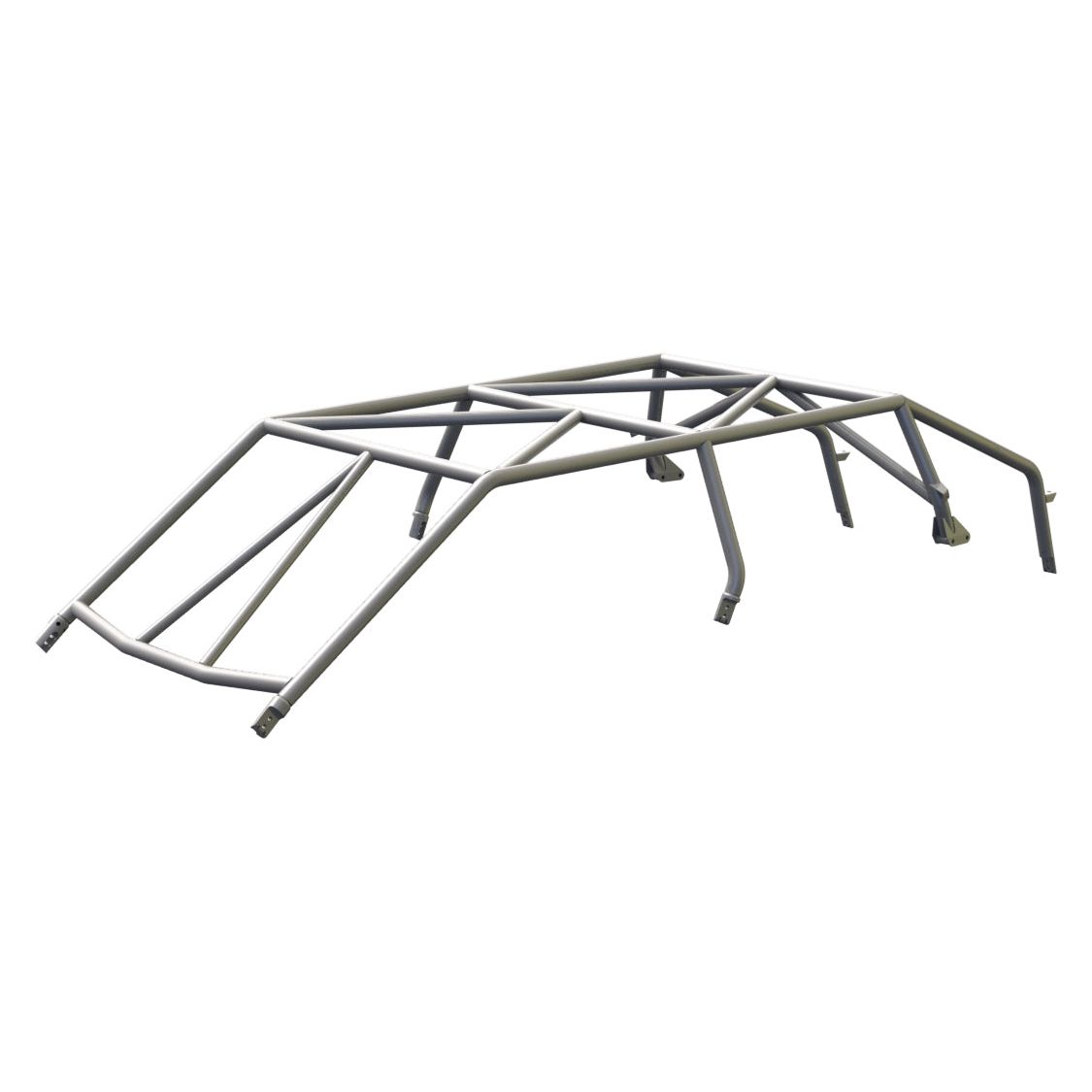

Ready-to-weld Roll Cage Kit for Polaris® RZR Pro XP 4 (2020+).
High quality DOM steel used throughout. Main tubes are 1.75" diameter and .095" thick, rear intrusion tubes are 1.5" diameter and .095" thick, front intrusion tubes are 1.25" diameter and .095" thick, all remaining tubes are 1.75" diameter and .095" thick. Our Baja Spec roll cages use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.
Features:
Highest grade 1020 DOM steel
1.75" x .095" Main Tubes & Internal tubes
1.5" x .095" Rear Intrusion tubes
1.25" x .095" Front Intrusion tubes
(6) CNC Machined chassis clamps included
Highly triangulated roll cage for added strength
Flat roof design used
Tubes are laser cut and labeled
No welding fixture required
No grinding or other fab work required
Competent welder and welding machine, tape measure and 2 ratchet straps are all that is required
Kit can be TIG or MIG welded
Includes:
20 Laser Notched Tubes with tab and slot design for easy positioning of tubes
6 Billet Tube Ends (chassis clamps)
4 Chassis Mount Plates
4 Chassis Mount Gussets
2 Whip mounts
NOTES:
Roof NOT Included in Kit
All Roll Cages have possible lead times due to fabrication. Freight shipping required for all Roll Cages, shipping cost may vary and is subject to change. Commercial address required for freight shipping.
