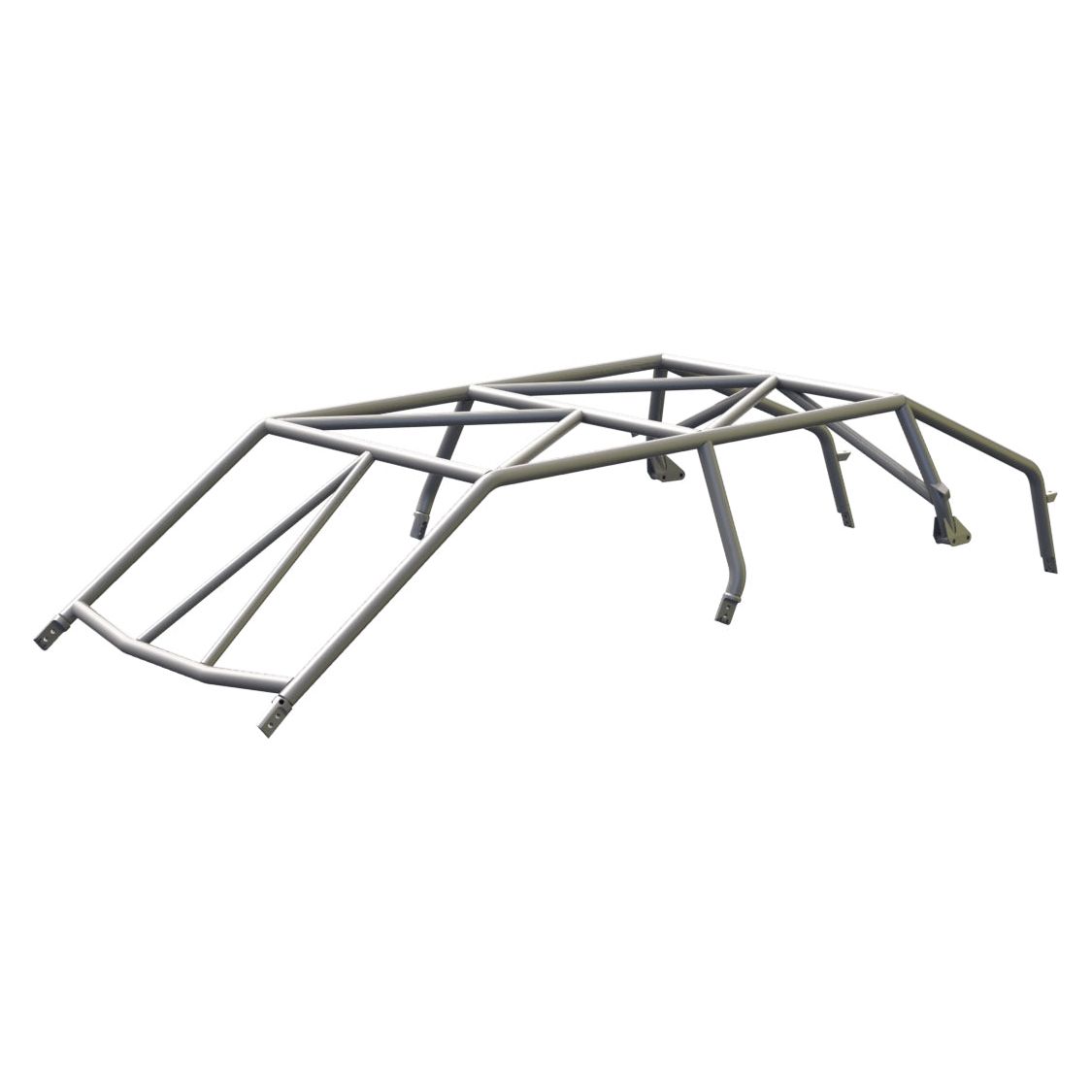

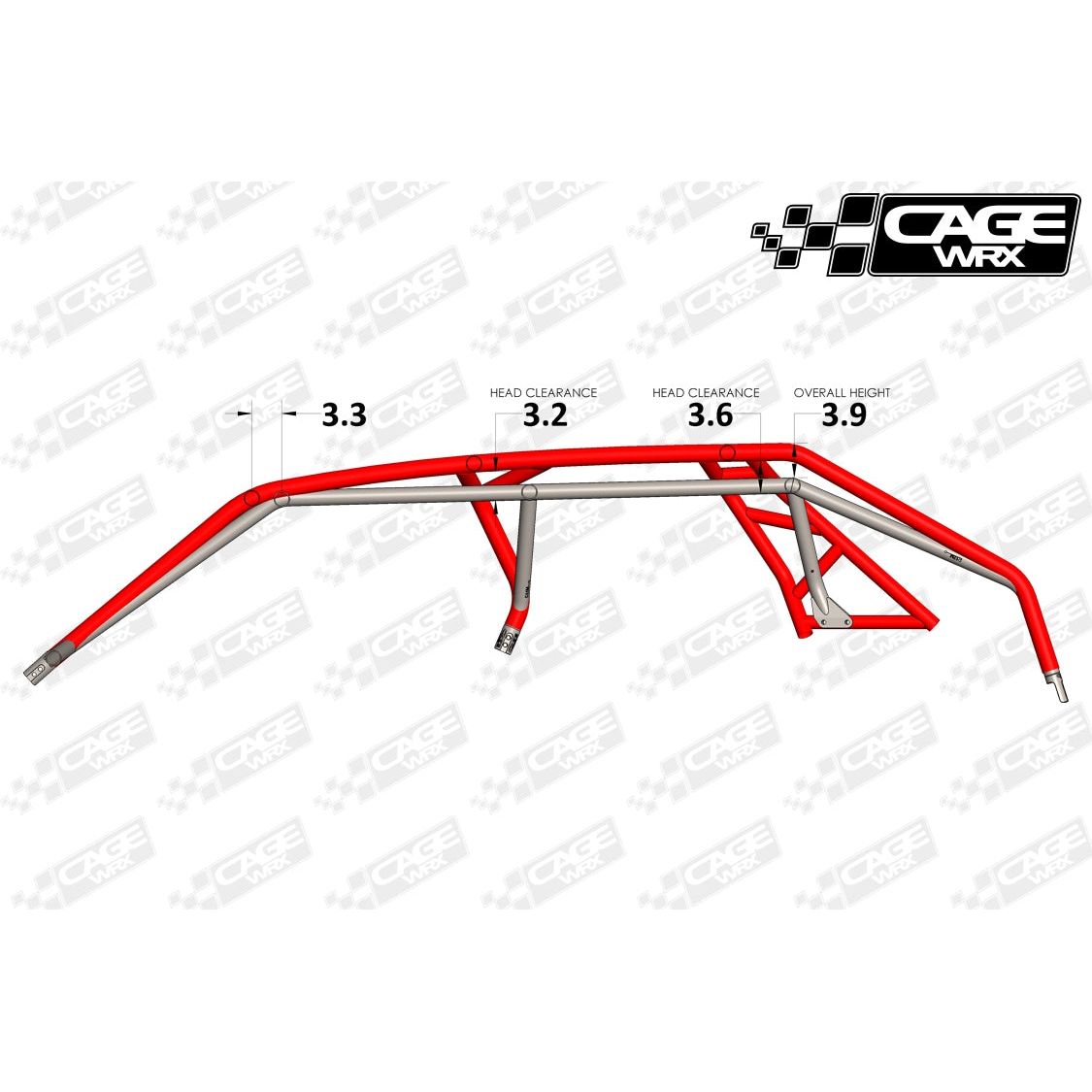

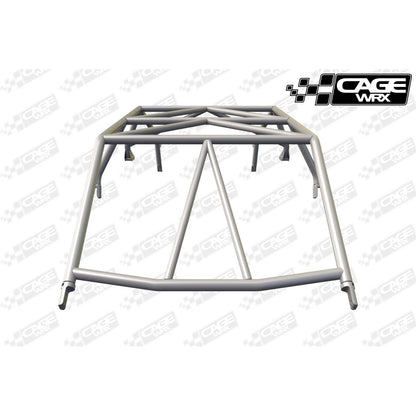

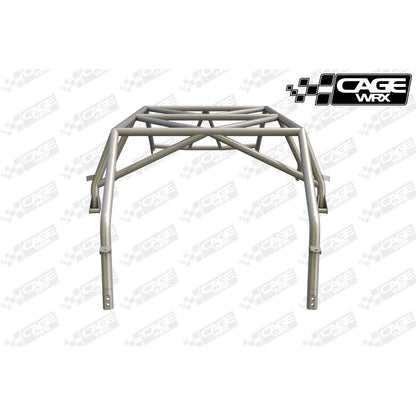

Polaris RZR Turbo R 4 Raw Unassembled Baja Spec Cage Kit

Ready-to-weld Roll Cage Kit for Polaris® RZR Turbo R 4 (2022+).

High quality DOM steel used throughout. Main tubes (roof tube and c-pillar) are 1.75" diameter .120" wall thickness, rear intrusion tubes are 1.5" diameter and .095" wall thickness, front intrusion tubes are 1.25" diameter and .095" wall thickness, all remaining tubes are 1.75" diameter and .095" wall thickness. Our Baja Spec roll cages use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.

Features:

• Highest grade 1020 DOM steel
• Main tubes 1.75" diameter .120 wall thickness
• Rear intrusion tubes 1.5" diameter .095" wall thickness
• Front intrusion tubes 1.25" diameter .095" wall thickness
• All other tubes 1.75" diameter .095" wall thickness
• (6) CNC Machined chassis clamps included
• Highly triangulated roll cage for added strength
• Flat roof design used
• Tubes are laser cut and labeled
• No welding fixture required
• No grinding or other fab work required
• Competent welder and welding machine, tape measure and 2 ratchet straps are all that is required
• Kit can be TIG or MIG welded

Includes:

• 20 Laser Notched Tubes with tab and slot design for easy positioning of tubes
• 6 Billet Tube Ends (chassis clamps)
• 4 Mounting plates and spacers for C-Pillar
• 2 Factory location whip mounts (Overhead whip mounts optional)

NOTE: Roof NOT Included in Kit.

VEHICLE FITMENT

Polaris RZR Turbo R 4

NOTE: Does NOT Fit 2-Seat Models.

INSTALLATION

• Click HERE to download a PDF file of the cage
• Click HERE to open the 3D E-Drawings for more help with your build!
