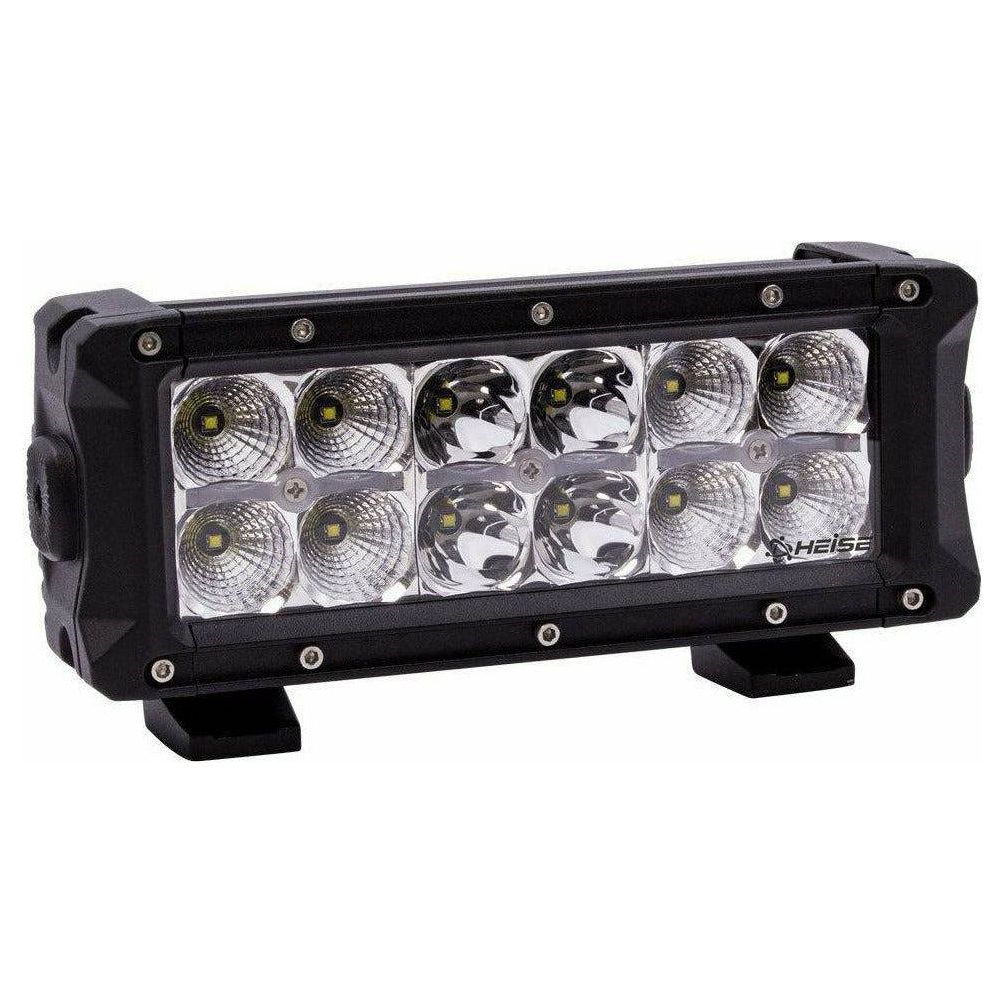

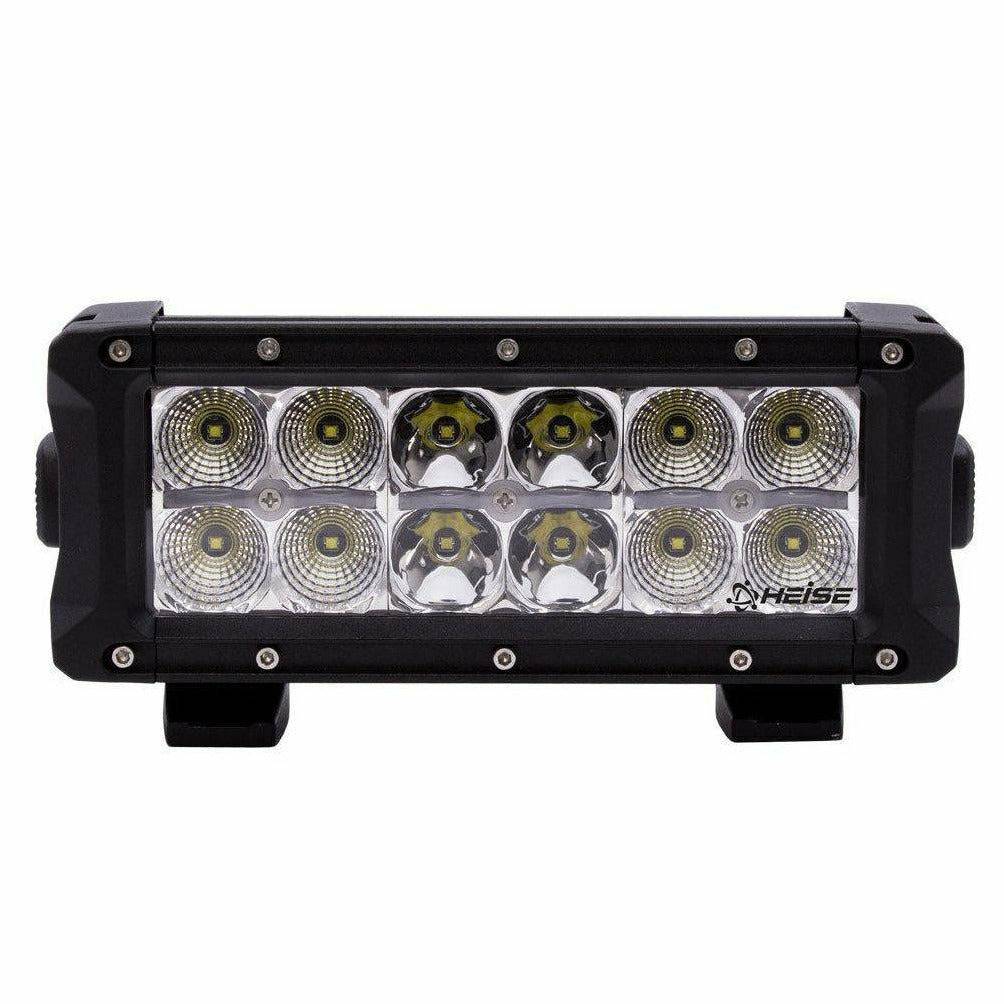

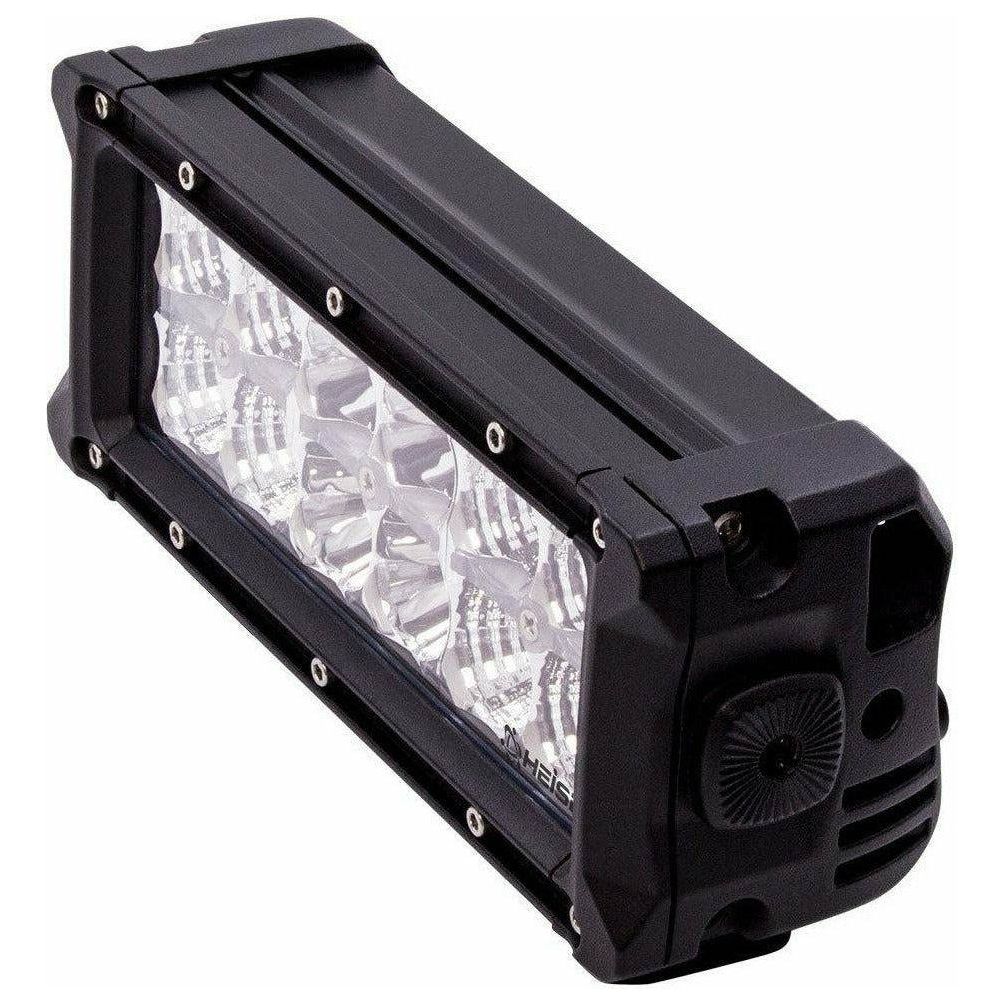

Dual Row DRL Series LED Lightbar 8"

Dual Row DRL Series LED Lightbar 8"

SKU:HE-DRL8
Regular price $179.00 USD
Regular price Sale price $179.00 USD
Sale Sold out
Shipping calculated at checkout.

Heise’s DRL Series dual-row light bars have an integrated daytime running light in the center along the entire length of the bar, with a clean white light that provides additional visibility – day or night.

The daytime running lights can be lit without the off-road lights being on and are powered by 6V to 24V circuits, using new 3-wire DT3 and ATP3 plugs and pigtails. Rated IP67 with a military grade metal breather port that allows moisture to escape. Built to last, featuring Heise proprietary torture-tested heavy-duty construction with a virtually unbreakable polycarbonate lens, backed by a limited lifetime warranty.

Specifications

  • Input Voltage: 10-30V DC
  • Power Consumption: 36W
  • (12-3W white LEDs)
  • Current Consumption: 2.6 amps at 13.8 volts
  • Raw Lumen: 2880 LM
  • Lux at 10m: 215 (white LEDs only)
  • Color Temperature: 6000K
  • Beam Pattern: Combo flood (90 degree) / spot (8 degree)

Construction

  • Housing Material: Die-cast aluminum
  • Housing Color: Black
  • Lens Material: Polycarbonate
  • Mounting Bracket: Die-cast aluminum

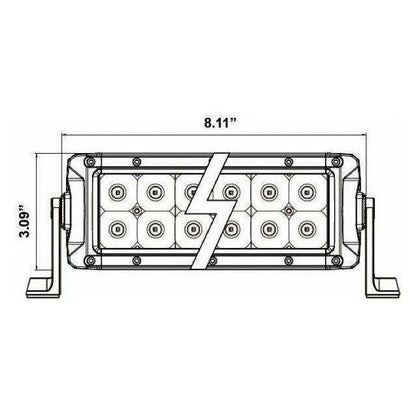

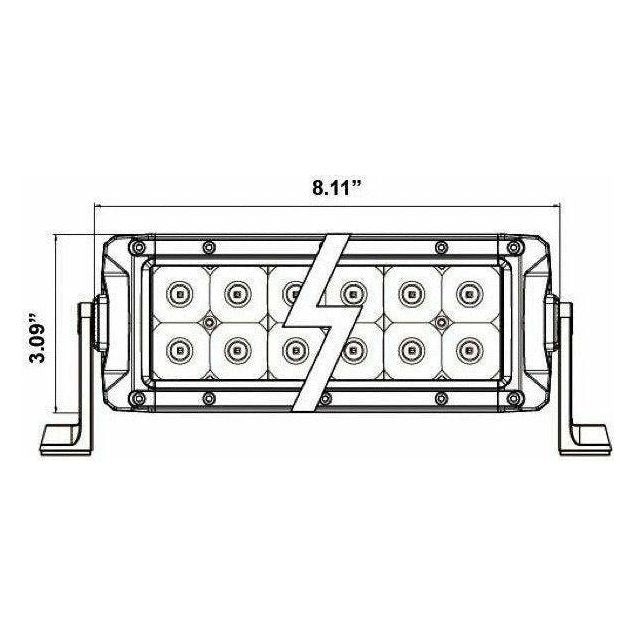

  • Hole Dimensions: Brackets Turned Inward – 7.25”
  • Brackets Turned Outward – 9.5”
  • Mounting Bolt Drill – .25”

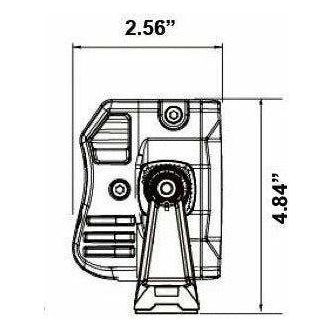

  • Height: 3”
  • Depth: 2.5”
  • Length (without mounting brackets): 8”
  • Electronics: Integrated-epoxy encapsulated
  • Hardware: Stainless 316

Operation

  • Operating Temperature: -40 degrees C to +60 degrees C
  • IP Rating: IP67
  • Protections: Reverse Polarity
VEHICLE FITMENT

Universal
