Expedition High Pressure Onboard Air System
Expedition High Pressure Onboard Air System
SKU:50005
No reviews
Regular price
$934.95 USD
Regular price
Sale price
$934.95 USD
Unit price
/
per
Shipping calculated at checkout.

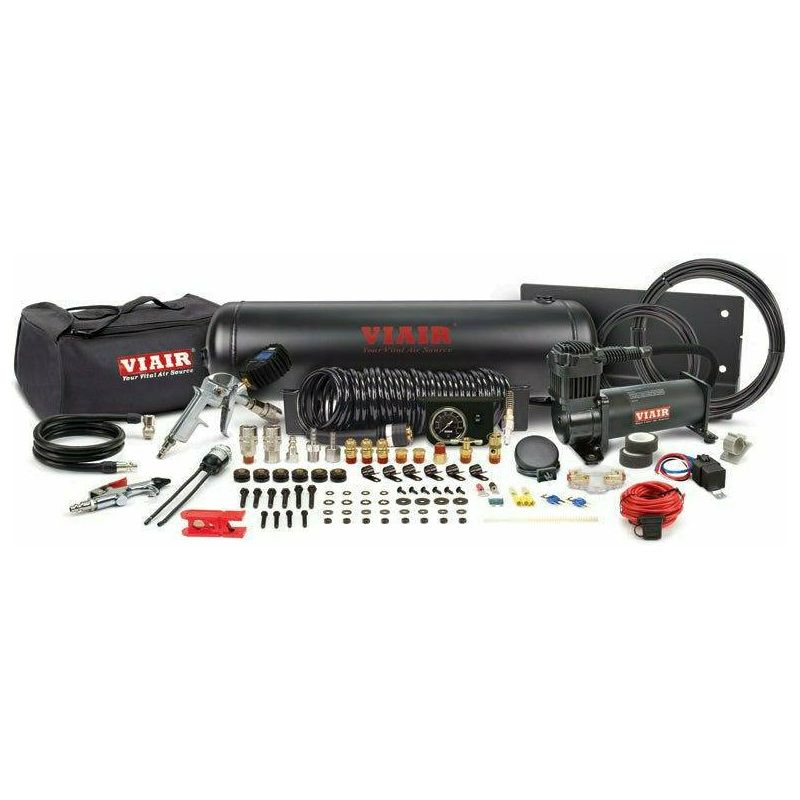

VIAIR’s Expedition High Pressure Onboard Air System is a pre-packaged compressed air solution that features a 100% duty cycle Stealth Black 444C compressor, a 2.5 gallon air tank, 180 PSI digital tire inflation gun, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Additional Info Download:
Manual
Dimensional Drawing
Wiring Diagram
| FEATURES |
|---|
| – 444C Stealth Black 200 PSI VIAIR Compressor |
| – 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI) |
| – Illuminated Dash Panel Gauge Kit, Black Face 200 PS |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – Sealed 40-Amp 4-prong Relay |
| – Mini ANL Fuse Holder w/ 40-Amp Fuse |
| – Tire Inflation Gun with 180 PSI Digital Gauge |
| – 30ft. Coil Hose with Quick Connect and Stud |
| – 90° 40in. Twist-On Air Hose Chuck |
| – Rubber Tipped Blow Gun |
| – 1/4″ 250 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – 1/4″ NPT (M) Quick Connect Coupler |
| – 1/4″ NPT (F) Quick Connect Coupler |
| – 1/4″ NPT (F) Quick Connect Stud |
| – 1/4″ Compression Fittings |
| – 1/4″ Air Line (15ft.) |
| – Stainless Steel Air Line Cutter |
| – Air Filter Housing w/ Replacement Air Filter Element |
| – Heavy Duty Universal Mounting Bracket |
| – 20ft. Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder |
| – VIAIR Storage Bag |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 200 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.63″L x 4.1″W x 6.44″H |
| – Net Weight: 11.10 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS | |||||
|---|---|---|---|---|---|
| – 5.0 Gallon Tank (P/N 91050) | |||||
| – 12V Relay (P/N 95900) | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
| – | |||||
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.24 | 12 | 0 | 70.0 | 12 |
| 10 | 1.84 | 14 | 1.0 | 51.0 | 15 |
| 20 | 1.75 | 16 | 2.0 | 47.0 | 16 |
| 30 | 1.67 | 17 | 3.0 | 44.0 | 18 |
| 40 | 1.61 | 18 | 4.0 | 41.0 | 20 |
| 50 | 1.54 | 19 | 5.0 | 38.0 | 21 |
| 60 | 1.47 | 20 | 6.0 | 35.0 | 21 |
| 70 | 1.42 | 21 | 7.0 | 32.0 | 22 |
| 80 | 1.36 | 21 | 8.0 | 29.0 | 22 |
| 90 | 1.30 | 22 | 9.0 | 27.0 | 22 |
| 100 | 1.23 | 22 | 10.0 | 25.0 | 23 |
| 110 | 1.17 | 22 | 11.0 | 22.0 | 22 |
| 120 | 1.11 | 22 | 12.0 | 21.0 | 21 |
| 130 | 1.06 | 22 | 13.0 | 21.0 | 21 |
| 140 | 1.01 | 23 | 13.8 | 21.0 | 21 |
| 150 | 0.97 | 22 | |||
| 160 | 0.92 | 22 | |||
| 170 | 0.88 | 22 | |||
| 180 | 0.84 | 21 | |||
| 190 | 0.77 | 21 | |||
| 200 | 0.73 | 21 |
* Supply Voltage: 13.8 Volts
TANK FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
TIRE FILL RATES
| 35” X 12.5 | FILL RATE |
|---|---|
| 0 to 30 PSI | 4 min. 34 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 27 sec. (± 05 sec.) |
| 37” X 12.5″ | FILL RATE |
| 0 to 30 PSI | 4 min. 59 sec. (± 15 sec.) |
| 15 to 30 PSI | 1 min. 19 sec. (± 05 sec.) |
VEHICLE FITMENT
Universal
