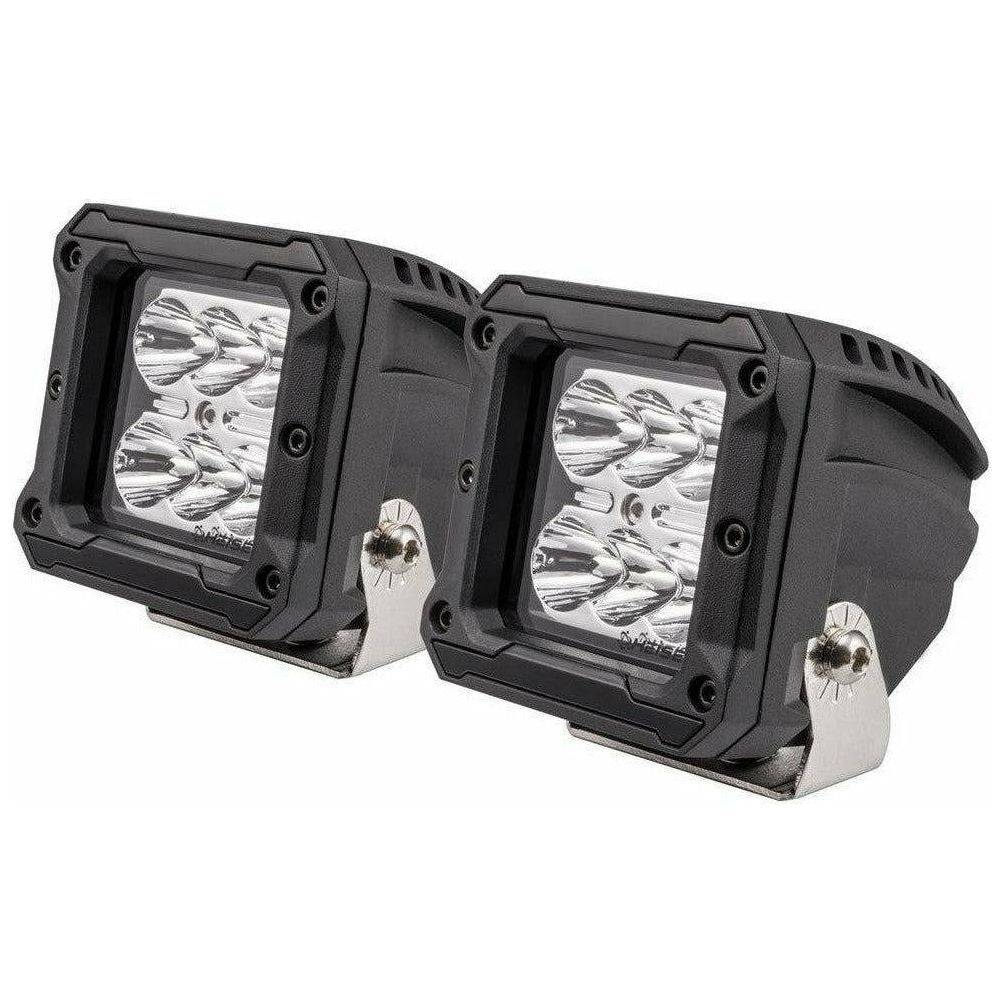

High Output Cube Spot Light 3" (Pair)

Includes Two HE-HCL3S lights with a dual light wiring harness (HE-DLWH1)

The narrow angle spotlight version of our 3 Inch 6 LEDCube Light illuminates the night with a high output. Compact housing allows a wide variety of applications: automotive, camping, work, search lighting or trail riding. This cube light provides 1440 raw lumens from six 3-watt OSRAM LEDs for plenty of light. Replaceable color accent caps are included to customize the housing.

Constructed of die-cast aluminum housing and a virtually unbreakable polycarbonate lens these cube lights are IP68 rated and can withstand the worst environments. It can get hit, shaken, banged up, and wet – without fear of failure.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Lux at 10M: 416
• Color Temperature: 6000K
• Beam Pattern: 8 degree spot

Construction:

• Housing Material: die-cast aluminum housing
• Housing Color: dark gray
• Lens Material: PC
• Mounting Bracket: stainless steel
• Electronics: integrated-epoxy encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40 degrees C to +60 degrees C
• Current Consumption: 1.1 Amps at 13.8 Volts
• IP Rating: IP68
• Protections: reverse polarity

Specifications for the HE-DLWH1:

• Universal plug-n-play wiring harness with on-off rocker switch
• 12V DC relay
• 30A Fuse
• With 2-pin DT connectors for 2 lamps
• With waterproof fuse holder
• Set includes wiring harness and switch

VEHICLE FITMENT

Universal
