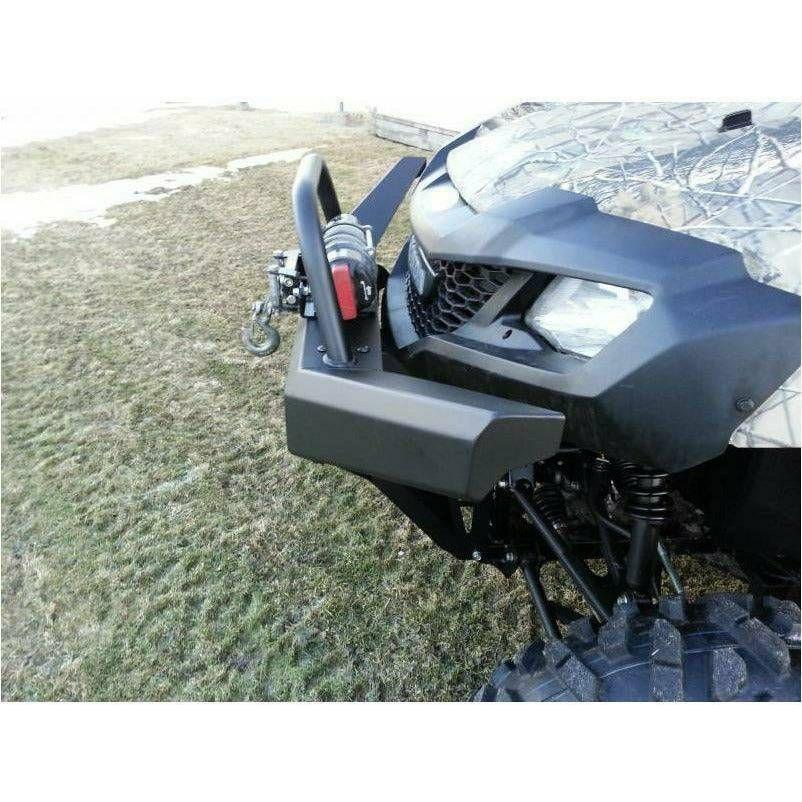

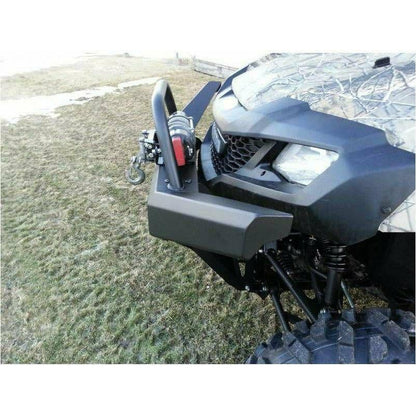

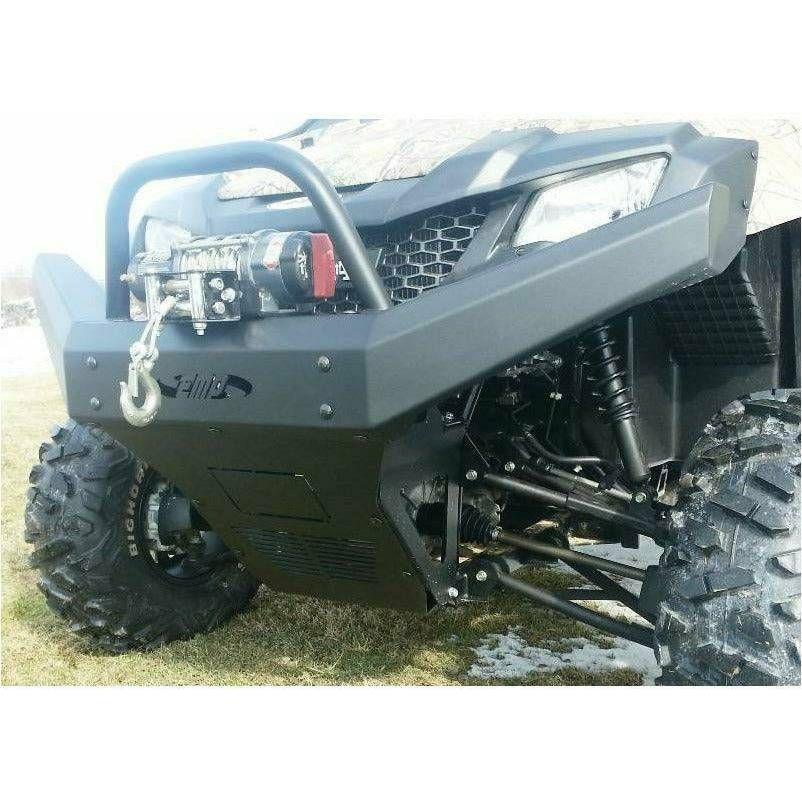

Add style and function to your Pioneer with this brush guard. Mount your winch on top to keep it high out of the mud and water, or mount it in the stock location behind the bash plate using our optional winch mount # 12437. Designed in CAD, laser cut, and CNC formed to ensure a perfect fit. If you would like to mount a winch and lights, you can use our light brackets #10599 to mount to the stinger tube.
Features:
Replaces stock Brush Guard.
All welds ground smooth.
Accepts most UTV Winches up to 4000 lbs.
Black Texture Powder Coated for superior protection.
Laser Cut and CNC formed to ensure a perfect fit.
1-1/2” Diameter Stinger Tube.
Made from 1/8” Thick American Steel.
Two Winch Bolt Patterns (3" deep x 4.875" wide and 4" deep x 6" wide, for regular and wide spool winches).
