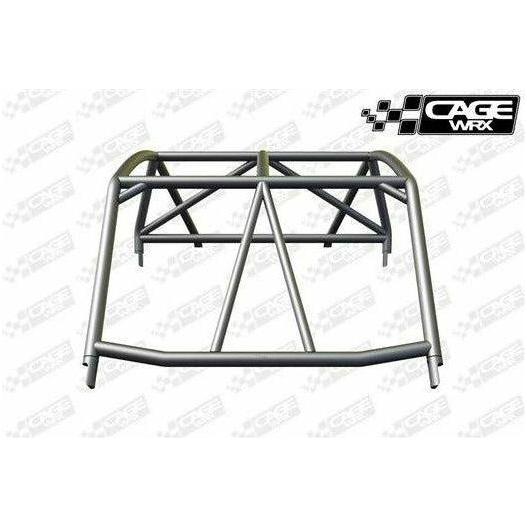

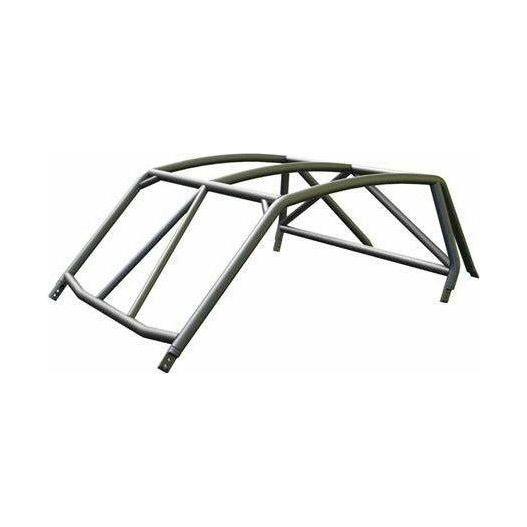

Trophy Truck inspired design and precision tubes make this the best roll cage kit on the market. All of our UTV Competition Cages utilize a slight radius roof line. All tubes are mandrel bent and laser cut for exact fit. Tube junctions are keyed for an exact fit. All six stock mounting locations are used and all six chassis clamps are included. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture. Everything needed to replace the stock roll cage is provided. Kit must be assembled and welded by a competent fabricator. Instructions are NOT included in the box, and all documents for the kit are available from this webpage.
Features:
Fits RZR XP 1000 EPS and RZR TURBO EPS (2014-2018)
Highest grade DOM steel used on all tubes
1.75" diameter main tubes
.095" wall thickness on all tubes

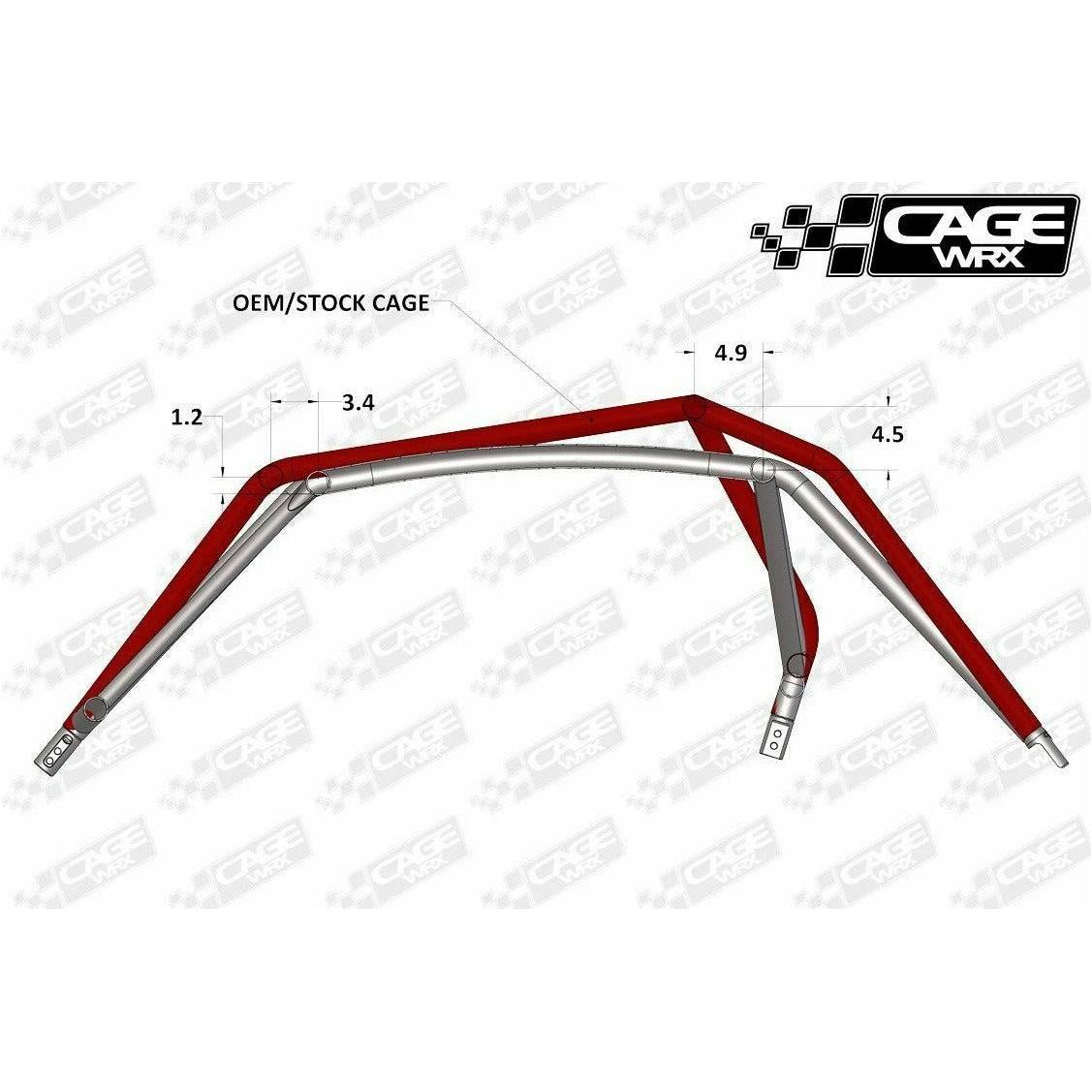

4.5" lower than stock XP1000 cage in rear
1.2" lower than stock XP1000 cage in front
Mounts to all six stock locations
Includes all six chassis clamps
Includes rear shock reservoir mounts
Cage weighs 75lbs
Includes:
15 laser cut tubes DOM steel tubes
Main tubes are 1.75" x .095"
6 CNC machined chassis clamps
2 Whip mounts
NOTES:
Roof NOT Included in Kit
All Roll Cages have possible lead times due to fabrication. Freight shipping required for all Roll Cages, shipping cost may vary and is subject to change. Commercial address required for freight shipping.
