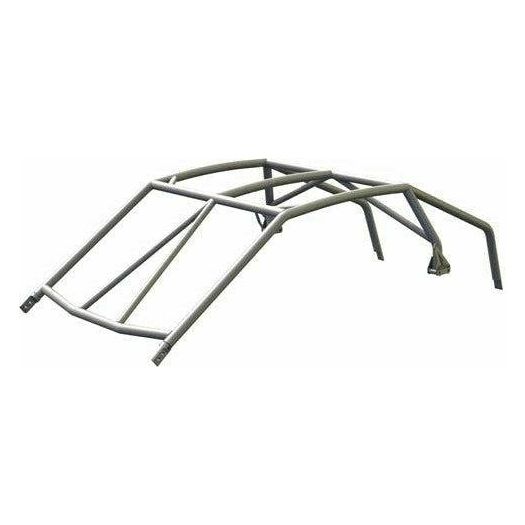

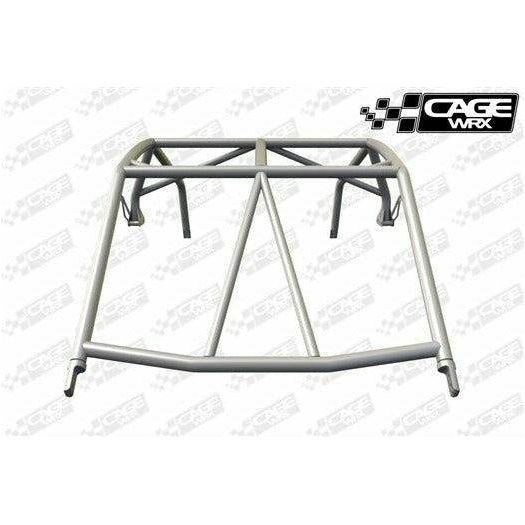

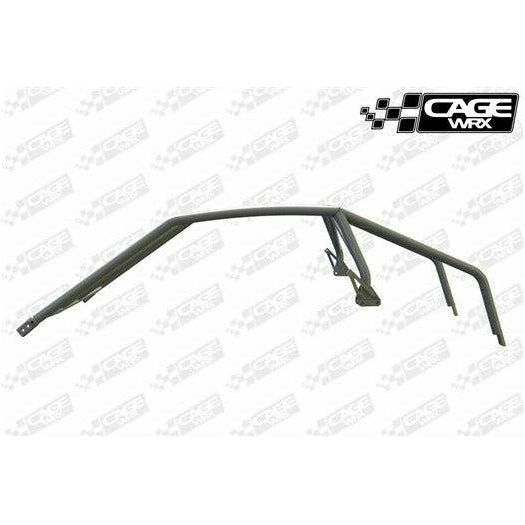

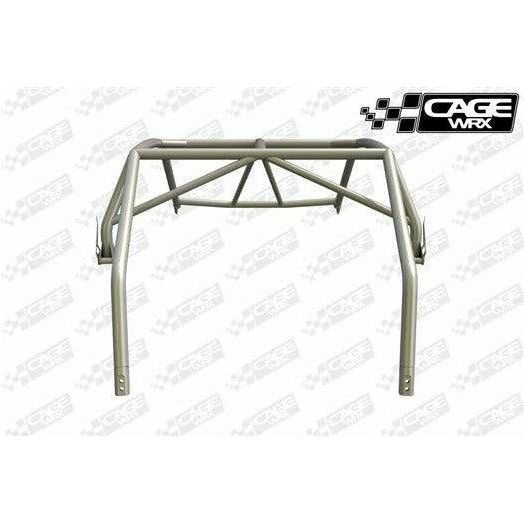

Polaris RZR Turbo R Raw Unassembled Super Shorty Cage Kit

High quality DOM steel used throughout. Main tubes (rolled roof tube and B-Pillar) are 1.75" diameter .120" wall thickness, intrusion tubes are 1.25" diameter and .095" wall thickness, all remaining tubes are 1.75" diameter and .095" wall thickness. Our Super Shorty roll cages use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.

Features:

• Highest grade 1020 DOM steel
• Main tubes 1.75" diameter .120 wall thickness
• Intrusion tubes 1.25" diameter .095" wall thickness
• All other tubes 1.75" diameter .095" wall thickness
• (8) CNC Machined chassis clamps included
• Highly triangulated roll cage for added strength
• Slight radius roof design used
• Tubes are laser cut and labeled
• No welding fixture required
• No grinding or other fab work required
• Competent welder and welding machine, tape measure and 2 ratchet straps are all that is required
• Kit can be TIG or MIG welded

Includes:

• 16 Laser Notched Tubes with tab and slot design for easy positioning of tubes
• 6 Billet Tube Ends (chassis clamps) 2 Whip mounts

NOTE: Roof NOT Included in Kit.

VEHICLE FITMENT

Polaris RZR Turbo R

NOTE: Does NOT Fit 4-Seat Models.

INSTALLATION

• Click HERE to download a PDF file of the cage
• Click HERE to open the 3D E-Drawings for more help with your build
