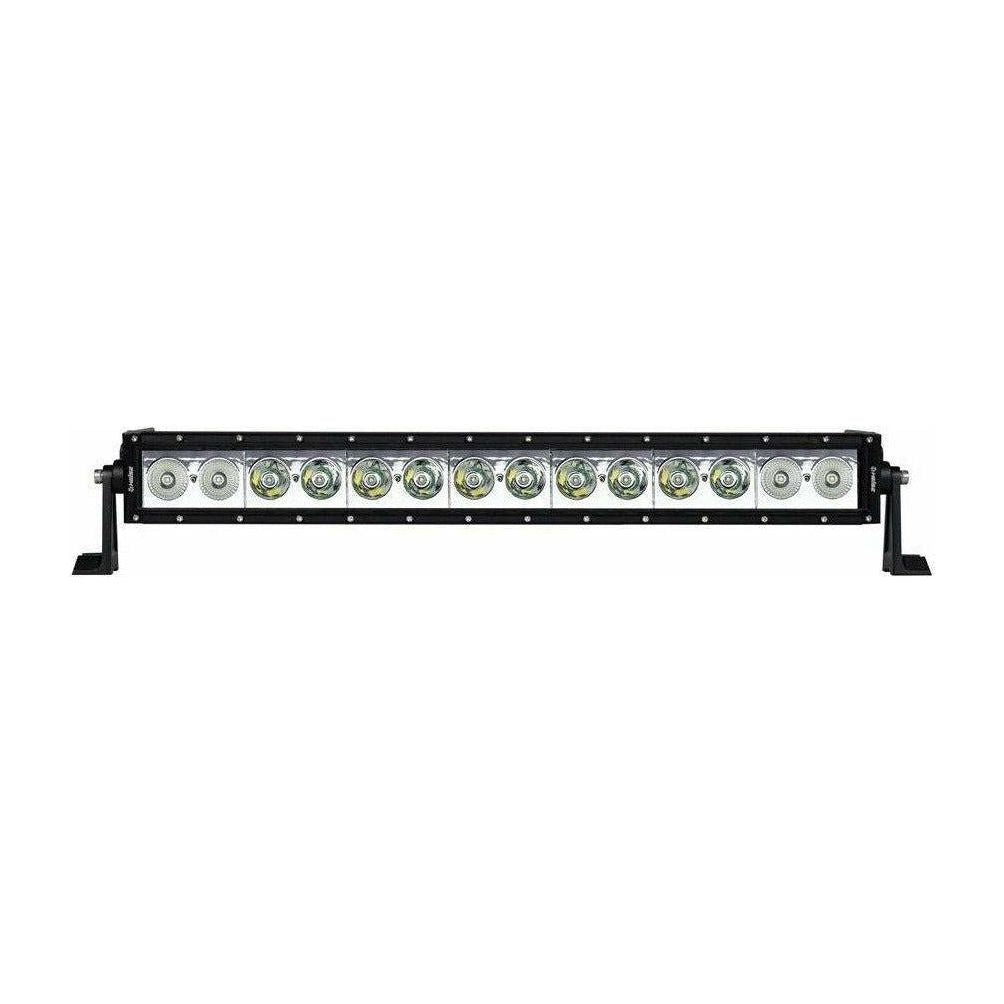

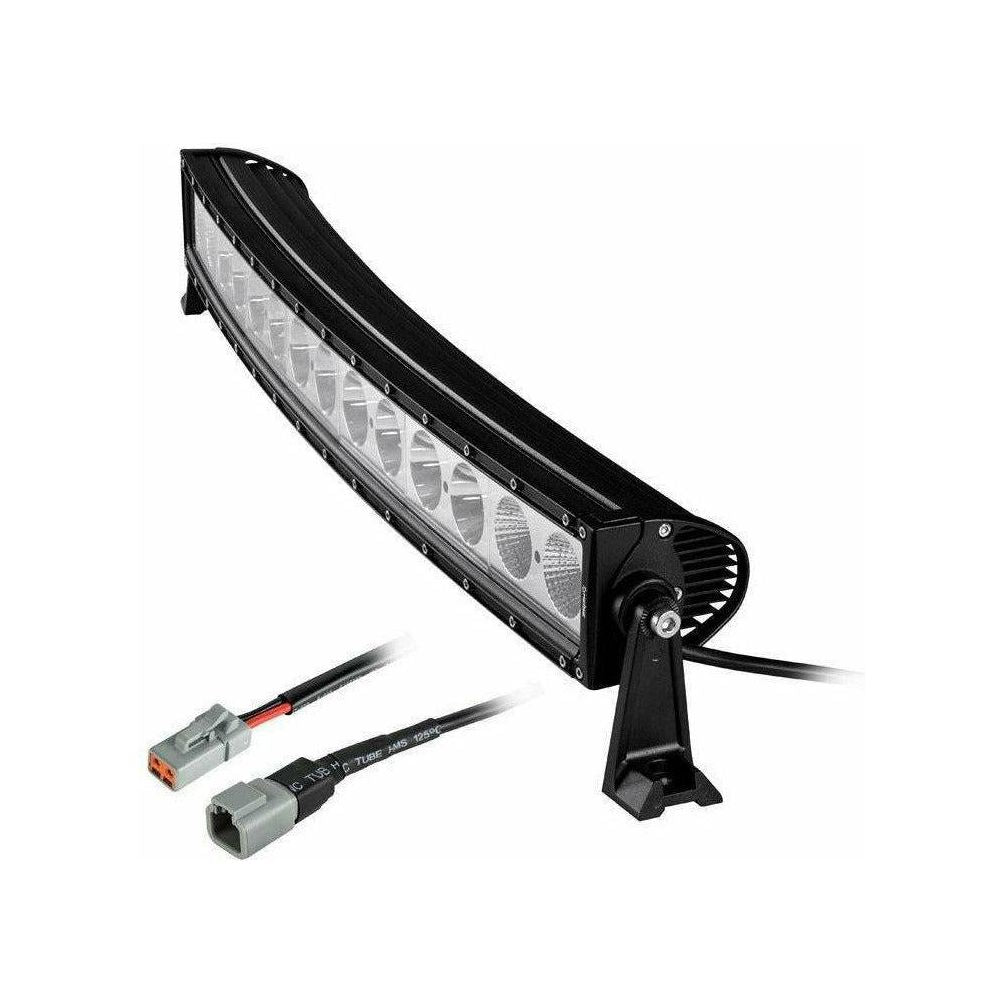

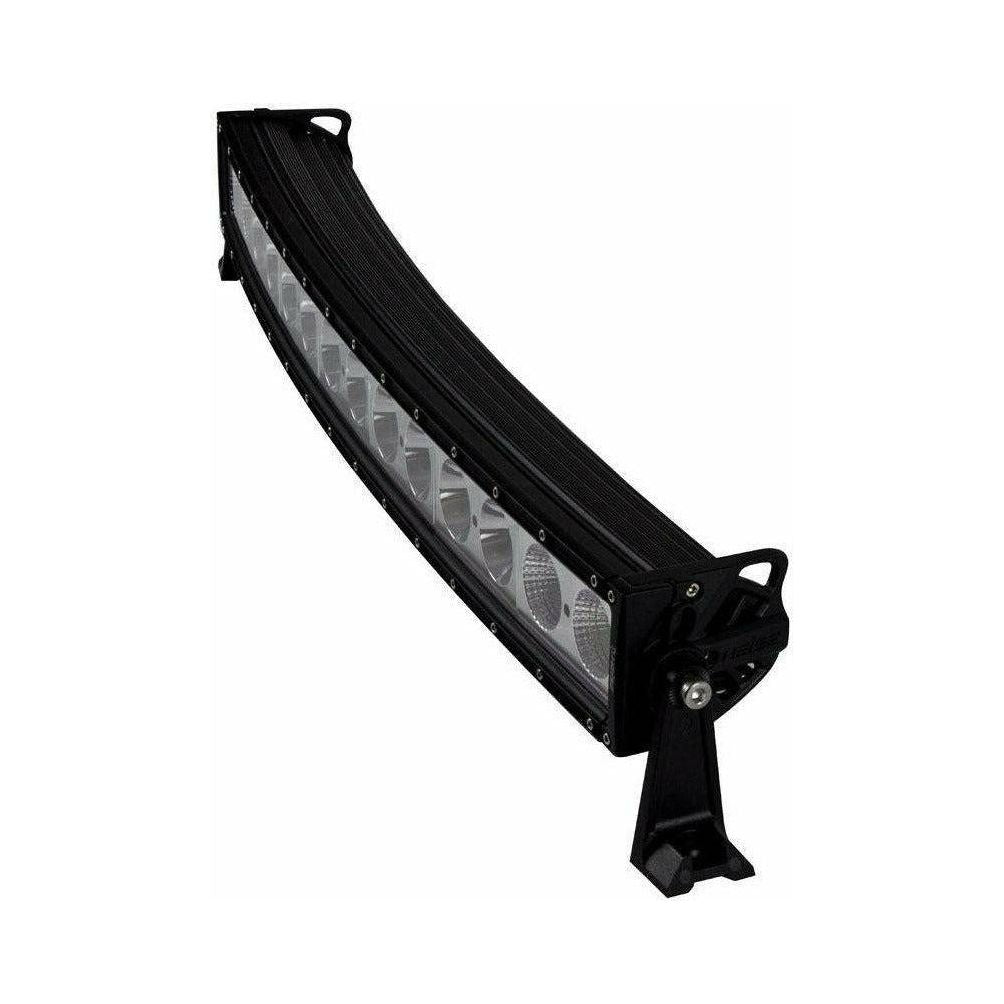

Single Row Curved LED Lightbar 30"

• Advanced thermal management- short circuit and open circuit protection and many other innovative features
• Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
• Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere

Specs:

• Input Voltage: 10-30V DC
• Power Consumption: 140W (14-10W CREE LEDs)
• Lumen Flux: 12600lm
• Color Temperature: 6000K
• Beam Pattern: combo-flood (120 deg)—spot (10deg)

Construction:

• Housing Material: die-cast aluminum housing
• Housing Color: black
• Lens Material: PC
• Mounting Bracket: die-cast aluminum

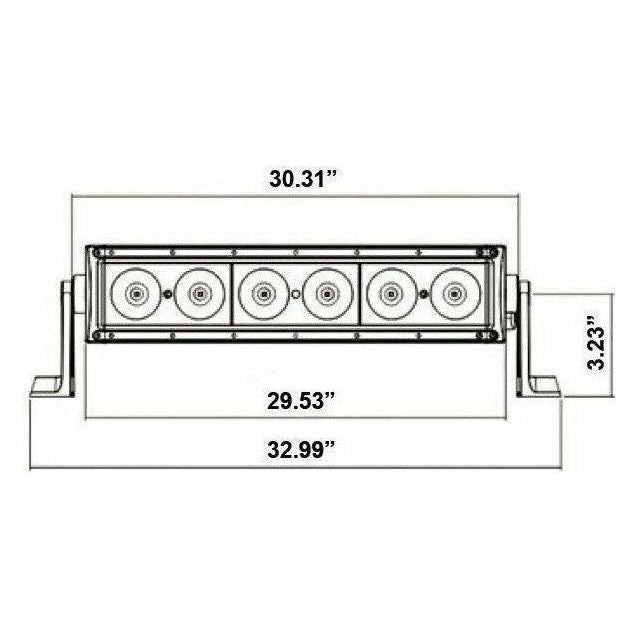

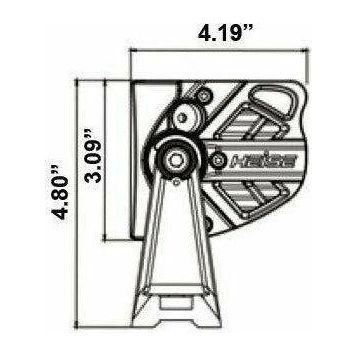

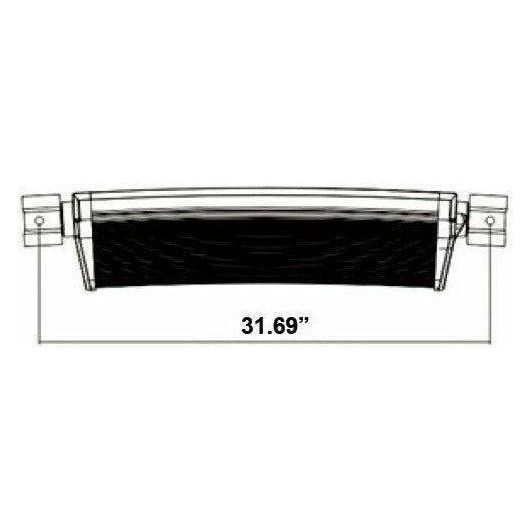

• Hole Dimensions:
  • Brackets turned inward – 29.50"
  • Brackets turned outward – 31.75"
• Mounting Bolt Drill – .25"
• Electronics: integrated-epoxy encapsulated
• Hardware: stainless 316

Operation:

• Operating Temperature: -40degC to +60degC
• IP Rating: IP67
• Protections: reverse polarity

VEHICLE FITMENT

Universal
