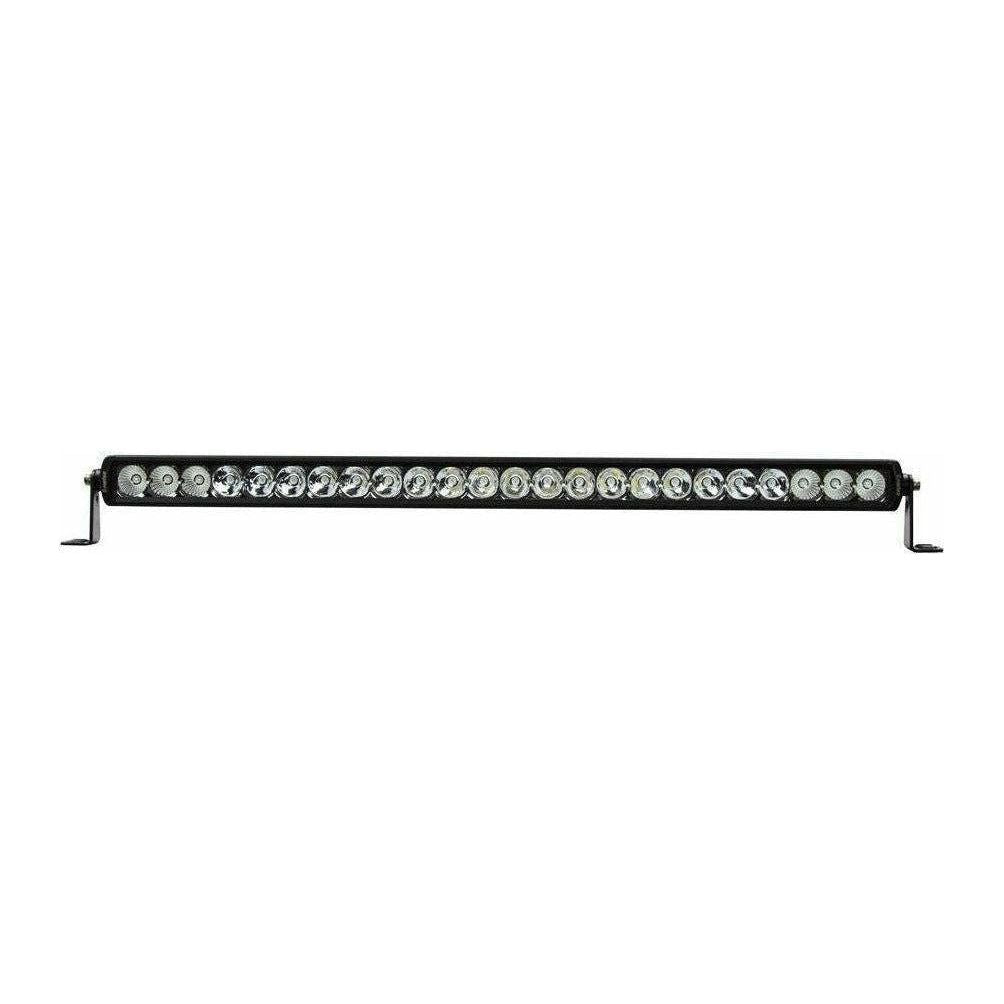

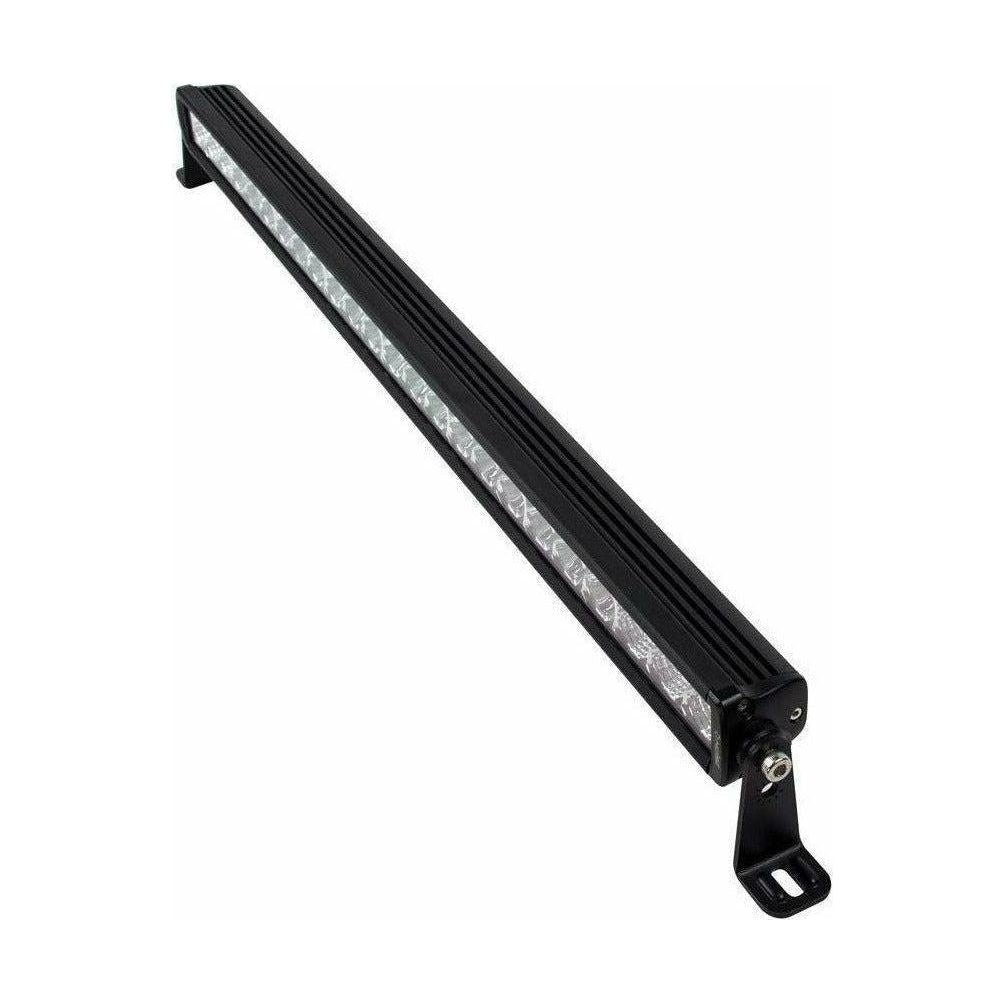

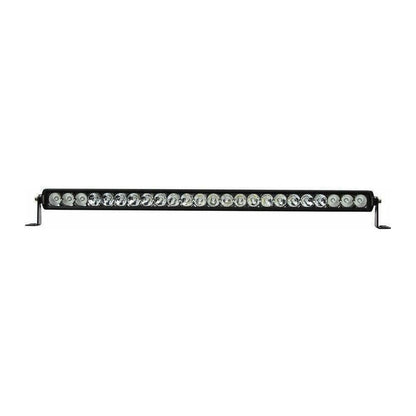

Single Row Slimline LED Lightbar 32"

Specs

• Input Voltage: 10-30V DC
• Wattage: 72W (24-3W OSRAM LEDs)
• Raw Lumens: 6480
• Color Temperature: 6000K
• Beam Pattern: combo/flood (90 degree) / spot (8 degree)

Construction

• Housing Material: powder-coated aluminum
• Housing Color: black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: die-cast aluminum
• Mounting: side and bottom

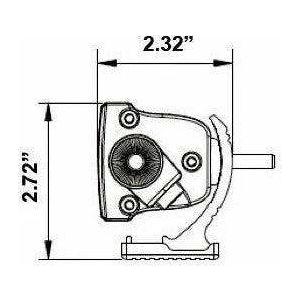

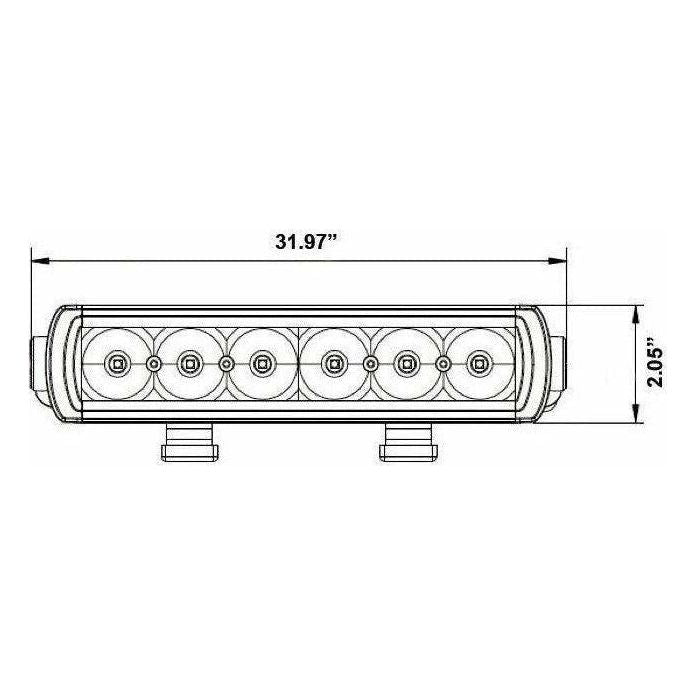

• Hole Dimensions:
  • Brackets turned inward – 49.25"
  • Brackets turned outward – 33.25"
  • Mounting bolt drill – .25"
• Electronics: integrated-epoxy encapsulated
• Hardware: stainless 316

Operation

• Operating Temperature: -40degC to +60degC
• Current Consumption: 4 amps at 13.8 volts
• IP Rating: IP67
• Protections: reverse polarity

VEHICLE FITMENT

Universal
