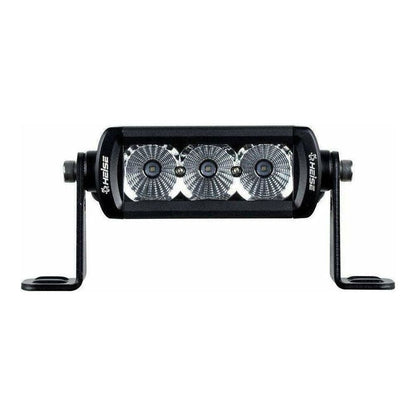

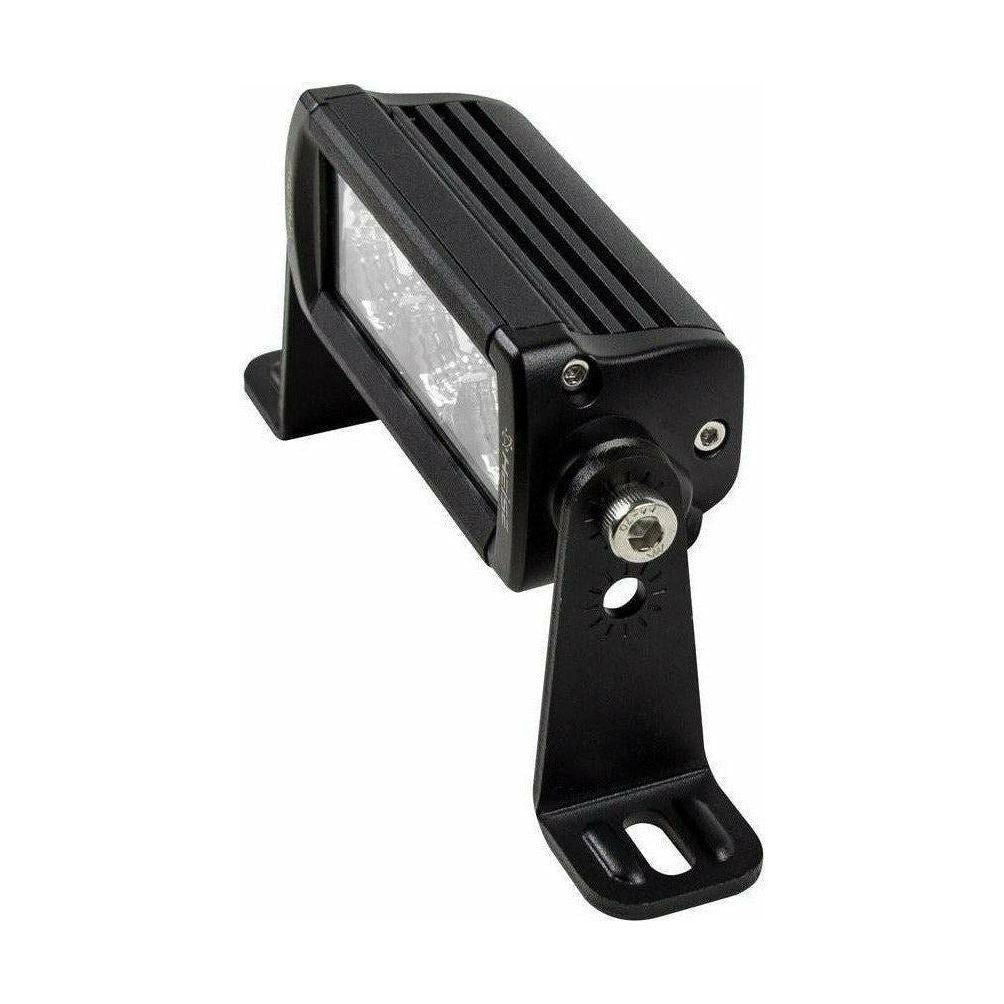

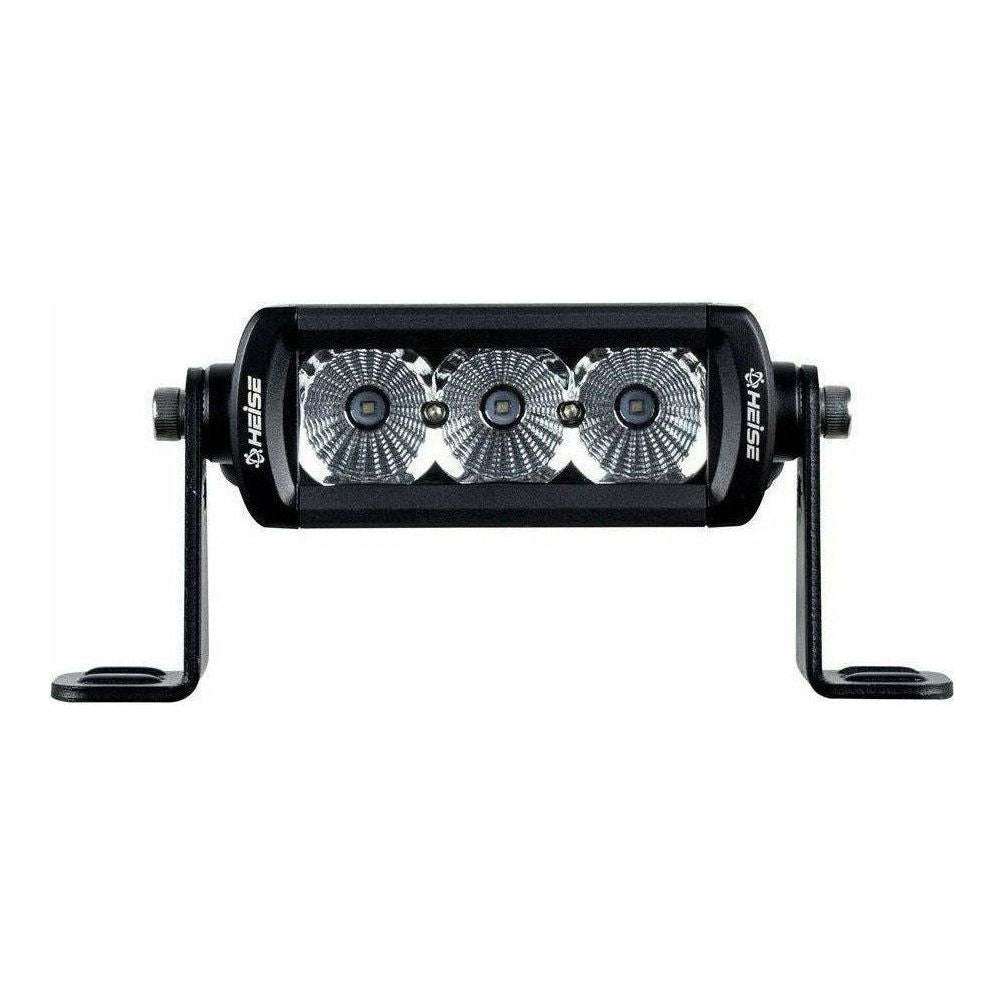

Single Row Slimline LED Lightbar 5.5"

Specs

• Input Voltage: 10-30V DC
• Wattage: 9W (3-3W OSRAM LEDs)
• Raw Lumens: 810
• Color Temperature: 6000K
• Beam Pattern: 90 degree flood

Construction

• Housing Material: powder-coated aluminum
• Housing Color: black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: die-cast aluminum
• Mounting: side and bottom

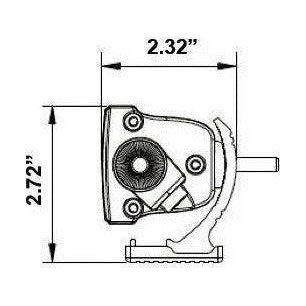

• Hole Dimensions: brackets turned outward – 7.25"
• Mounting Bolt Drill – .25"
• Electronics: integrated-epoxy encapsulated
• Hardware: stainless 316

Operation

• Operating Temperature: -40degC to +60degC
• Current Consumption: .4 amps at 13.8 volts
• IP Rating: IP67
• Protections: reverse polarity

VEHICLE FITMENT

Universal
