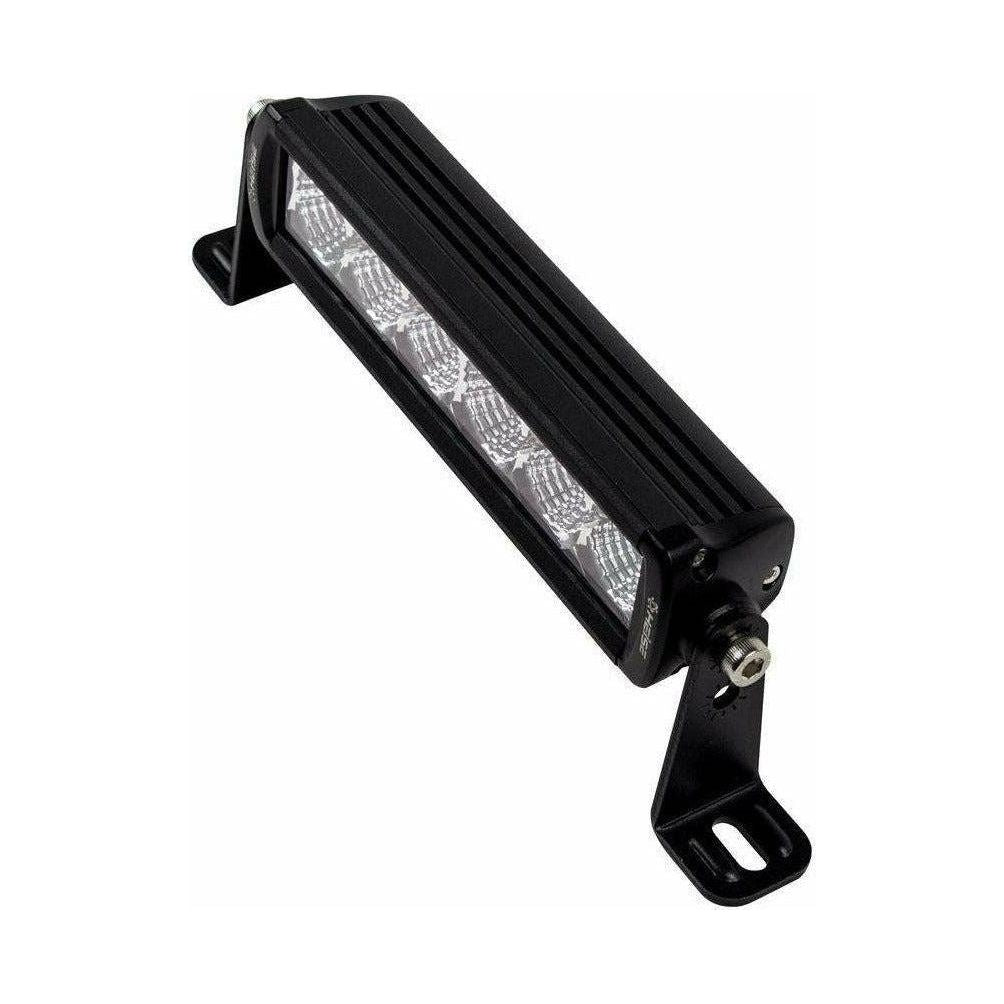

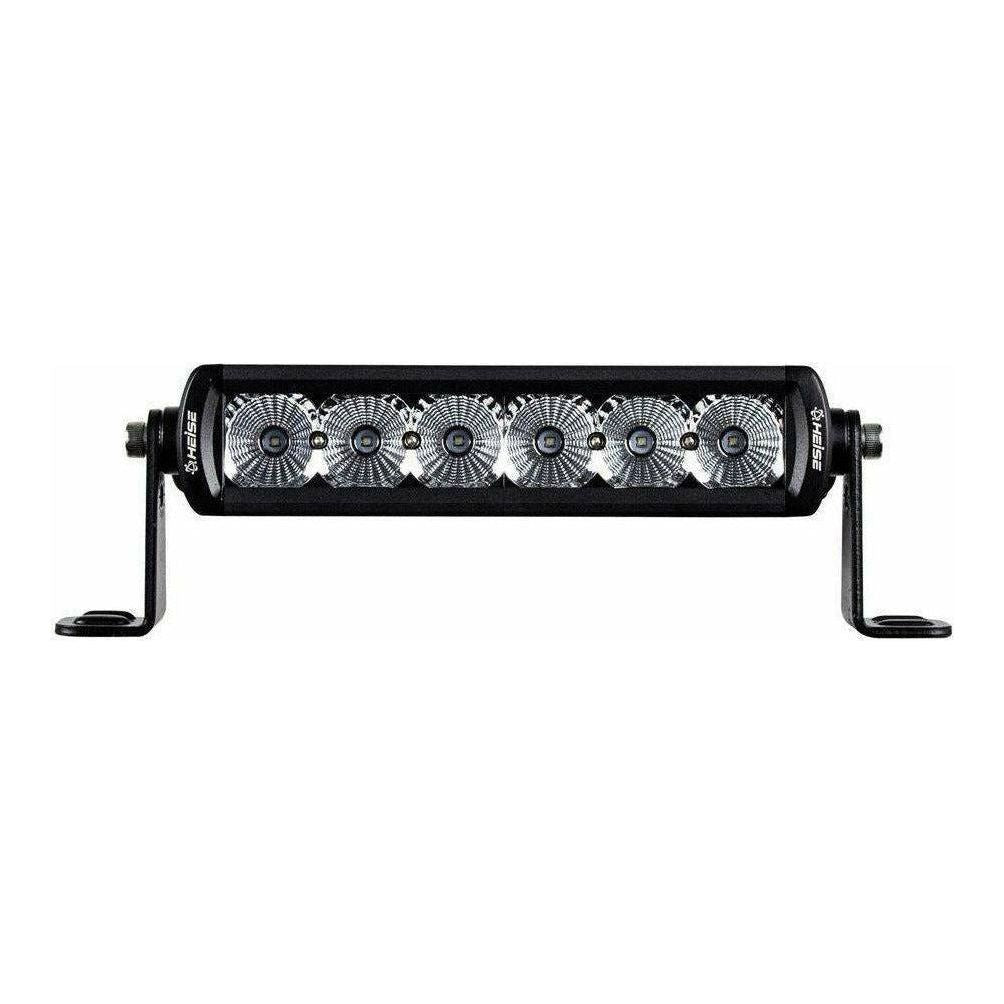

Single Row Slimline LED Lightbar 9.25"

Specs

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1620
• Color Temperature: 6000K
• Beam Pattern: 90 degree flood

Construction

• Housing Material: powder-coated aluminum
• Housing Color: black
• Membrane: Gore™
• Lens Material: PC

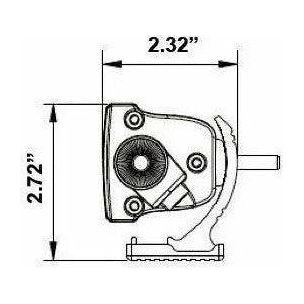

• Mounting Bracket: side and bottom mounting
• Mounting: side and bottom

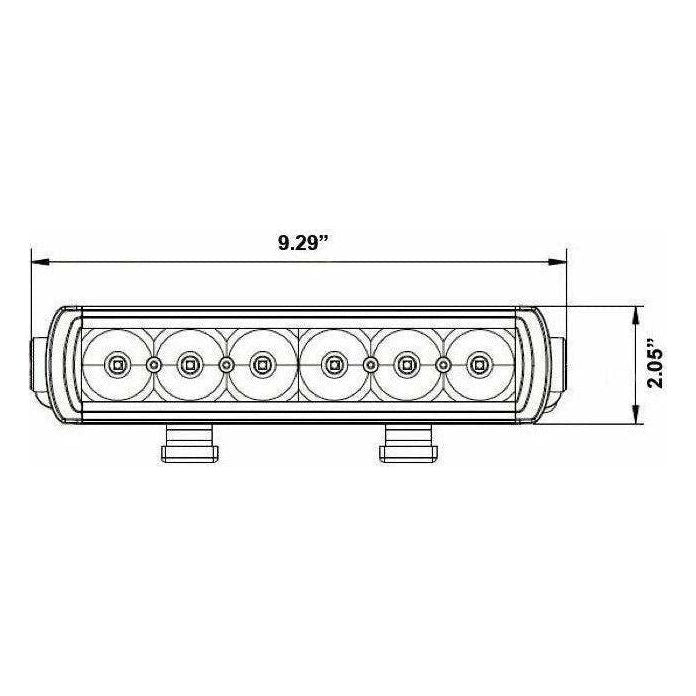

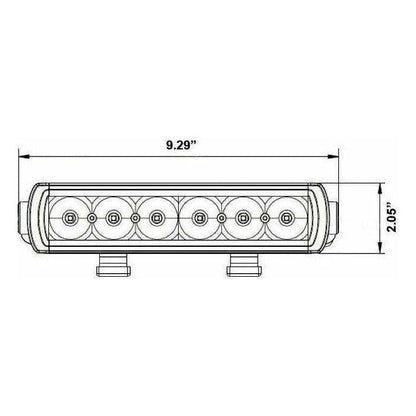

• Hole Dimensions: Brackets turned outward – 11"
• Mounting Bolt Drill – .25"
• Electronics: integrated-epoxy encapsulated
• Hardware: stainless 316

Operation

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
  Protections: Reverse Polarity

VEHICLE FITMENT

Universal
