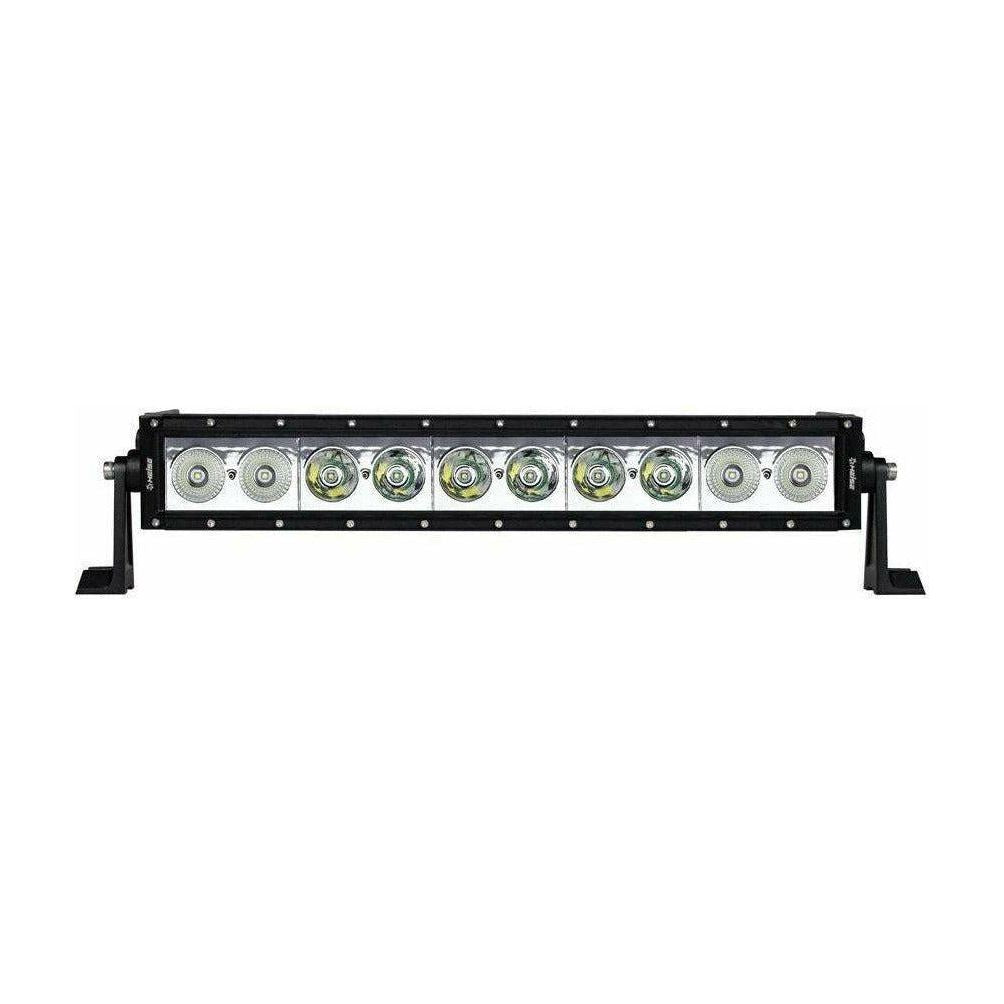

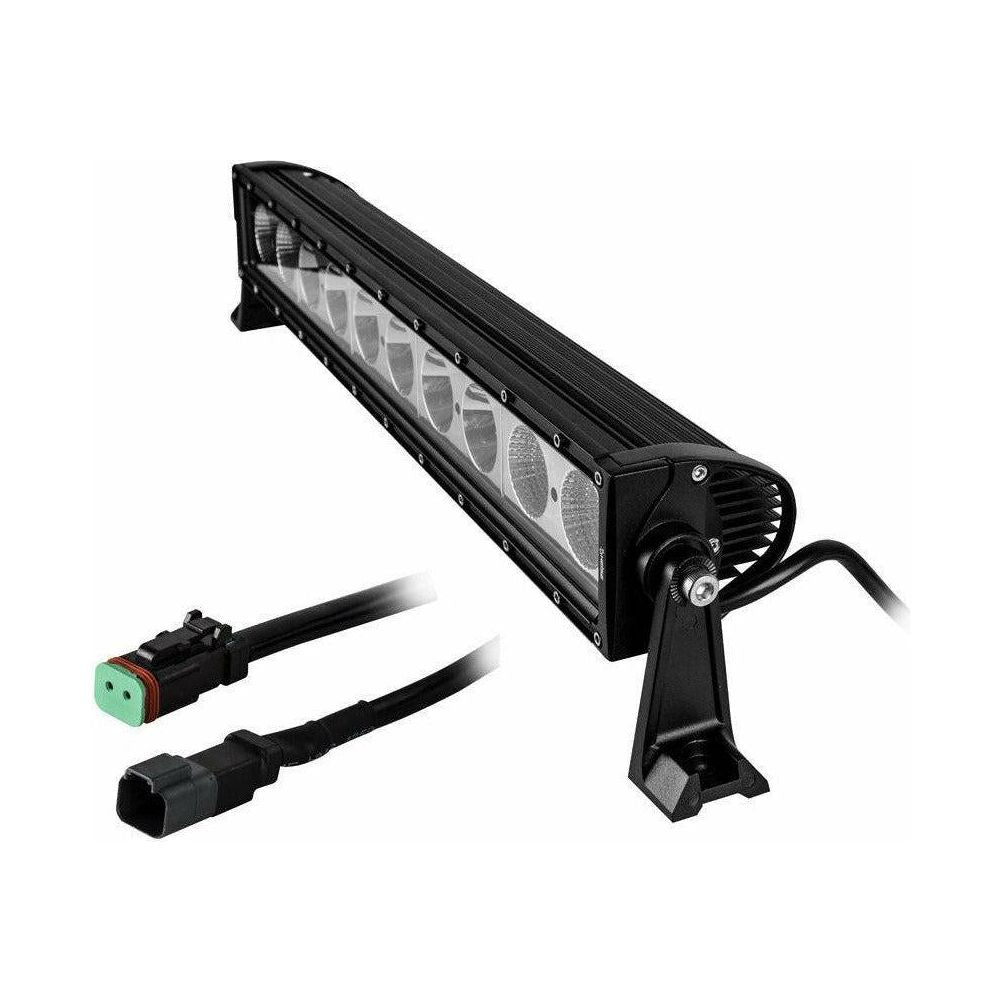

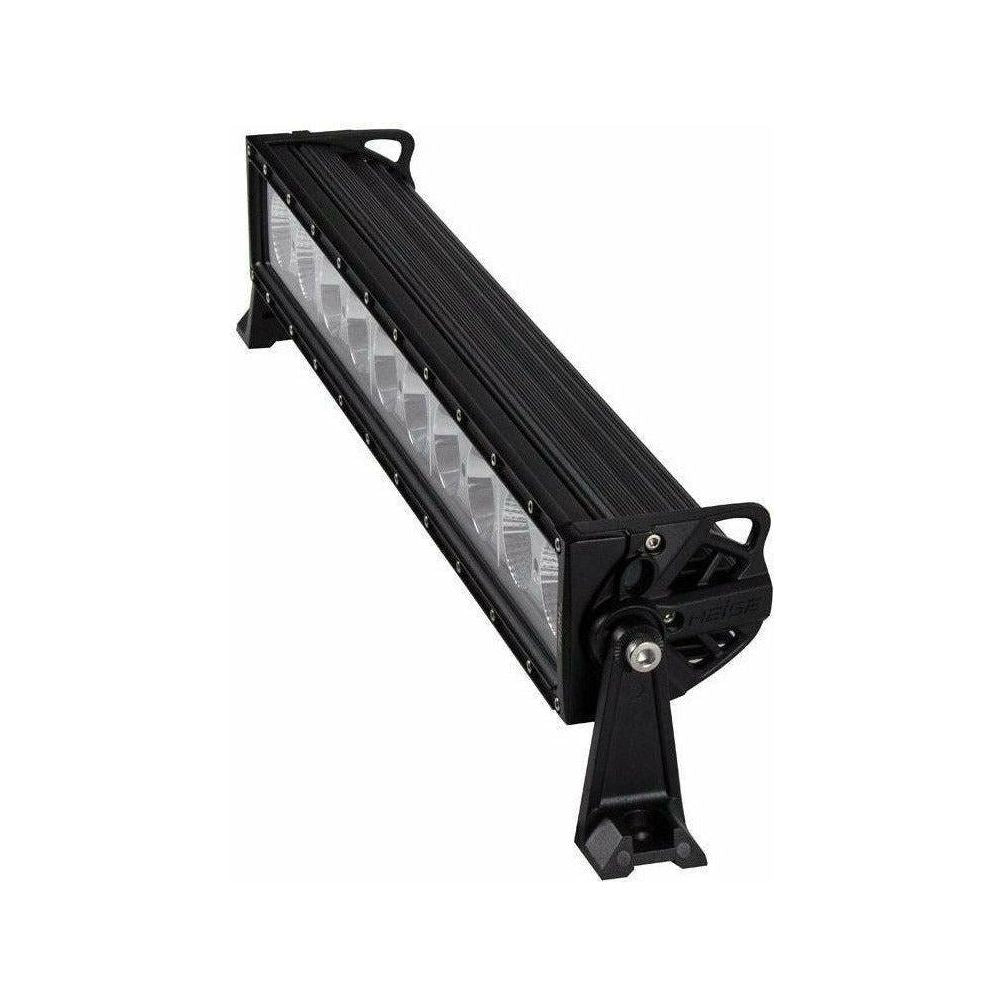

Single Row Straight LED Lightbar 22"

• Advanced thermal management short circuit and open circuit protection and many other innovative features
• Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
• Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere

Specs

• Input Voltage: 10-30V DC
• Power Consumption: 100W (10-10W CREE LEDs)
• Lumen Flux: 9000lm
• Color Temperature: 6000K
• Beam Pattern: combo/flood (120 deg—spot (10 deg)

Construction

• Housing Material: die-cast aluminum housing
• Housing Color: black
• Lens Material: PC
• Mounting Bracket: die-cast aluminum

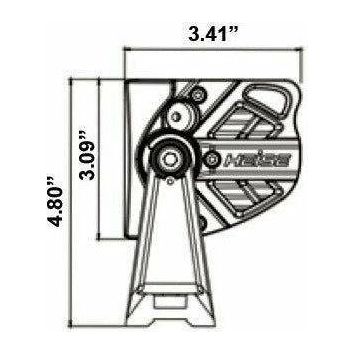

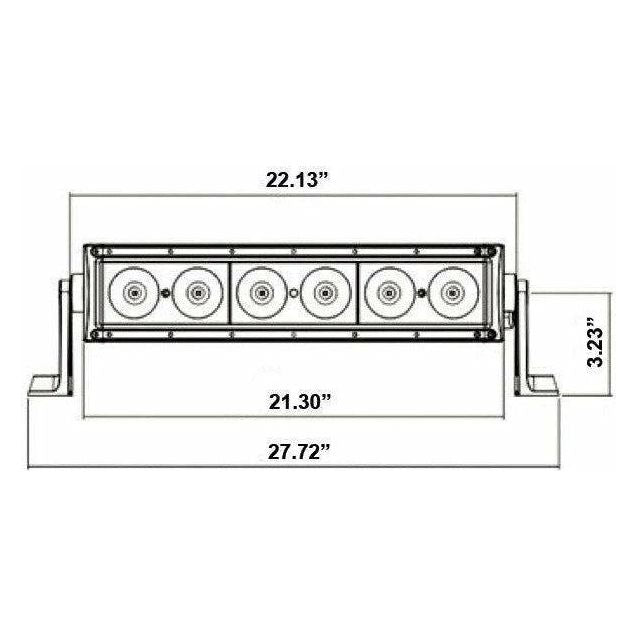

• Hole Dimensions:
  • Brackets turned inward – 21.50"
  • Brackets turned outward – 23.75"
• Mounting Bolt Drill – .25"
• Electronics:integrated-epoxy encapsulated
• Hardware: stainless 316

Operation

• Operating Temperature: -40degC to +60degC
• IP Rating: IP67
• Protections: reverse polarity

VEHICLE FITMENT

Universal
