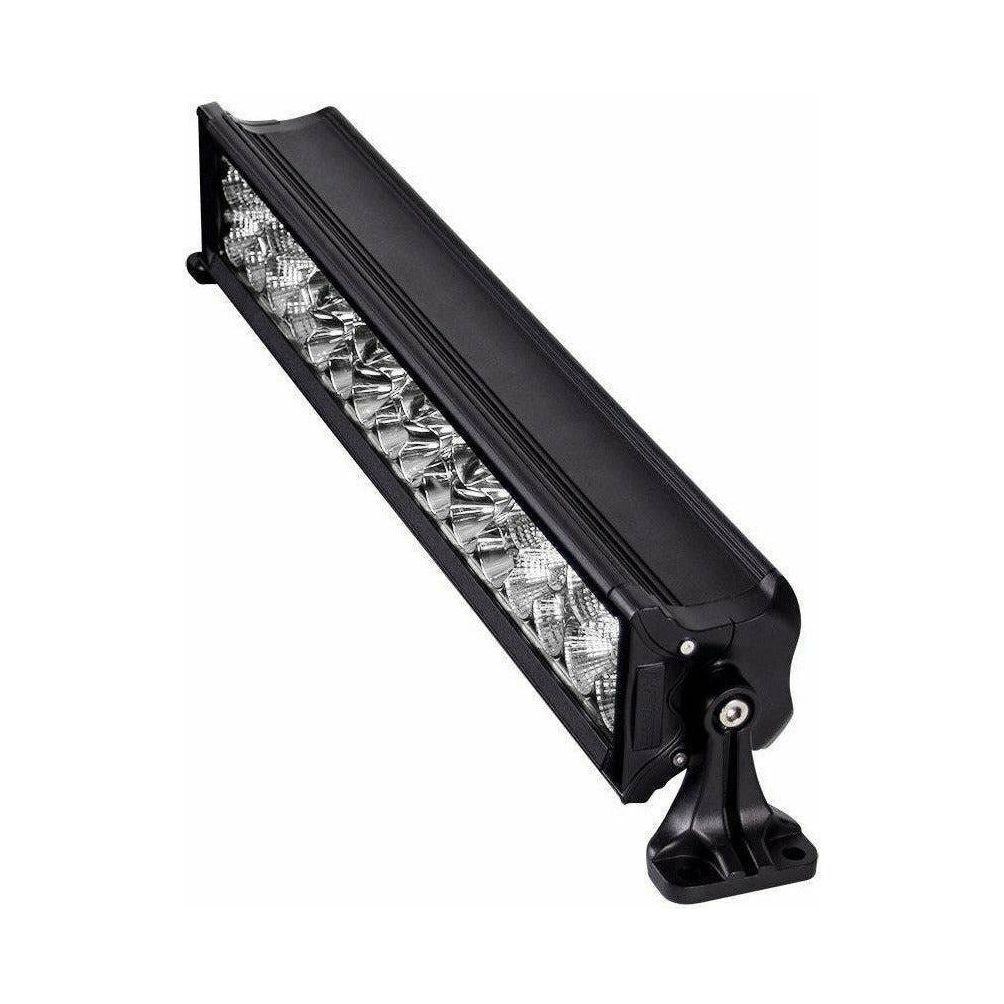

Triple Row LED Lightbar 20"

Specs

• Input Voltage: 10-30V DC
• Wattage: 120W (40-3W OSRAM LEDs)
• Raw Lumens: 9600
• Color Temperature: 6000K
• Beam Pattern: combo/flood (90 deg)/spot (8 deg)

Construction

• Housing Material: powder coated aluminum
• Housing Color: black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: die-cast aluminum
• Hole Dimensions: Brackets turned outward – 23.75"
• Mounting Bolt Drill – .25"

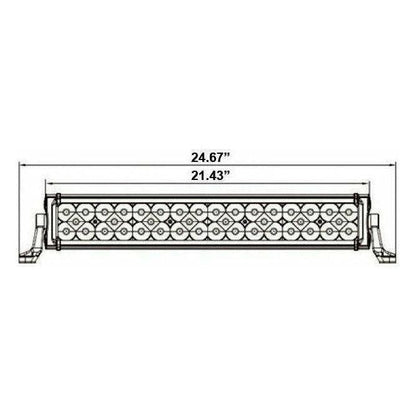

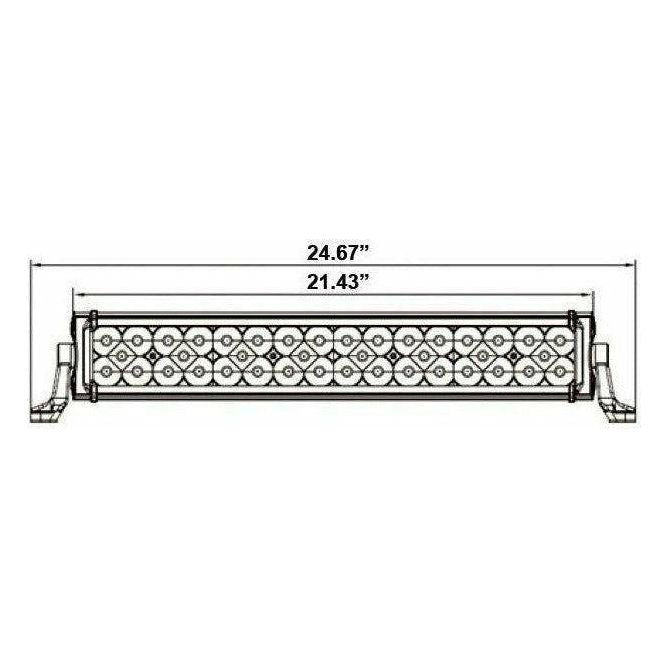

• Length of Bar without Mounting Brackets: 21.25"
• Electronics: integrated-epoxy encapsulated
• Hardware: stainless 316

Operation

• Operating Temperature: -40degC to +60degC
• Current Consumption: 6.7 amps at 13.8 volts
• IP Rating: IP67
• Protections: reverse polarity

VEHICLE FITMENT

Universal
